Product Description

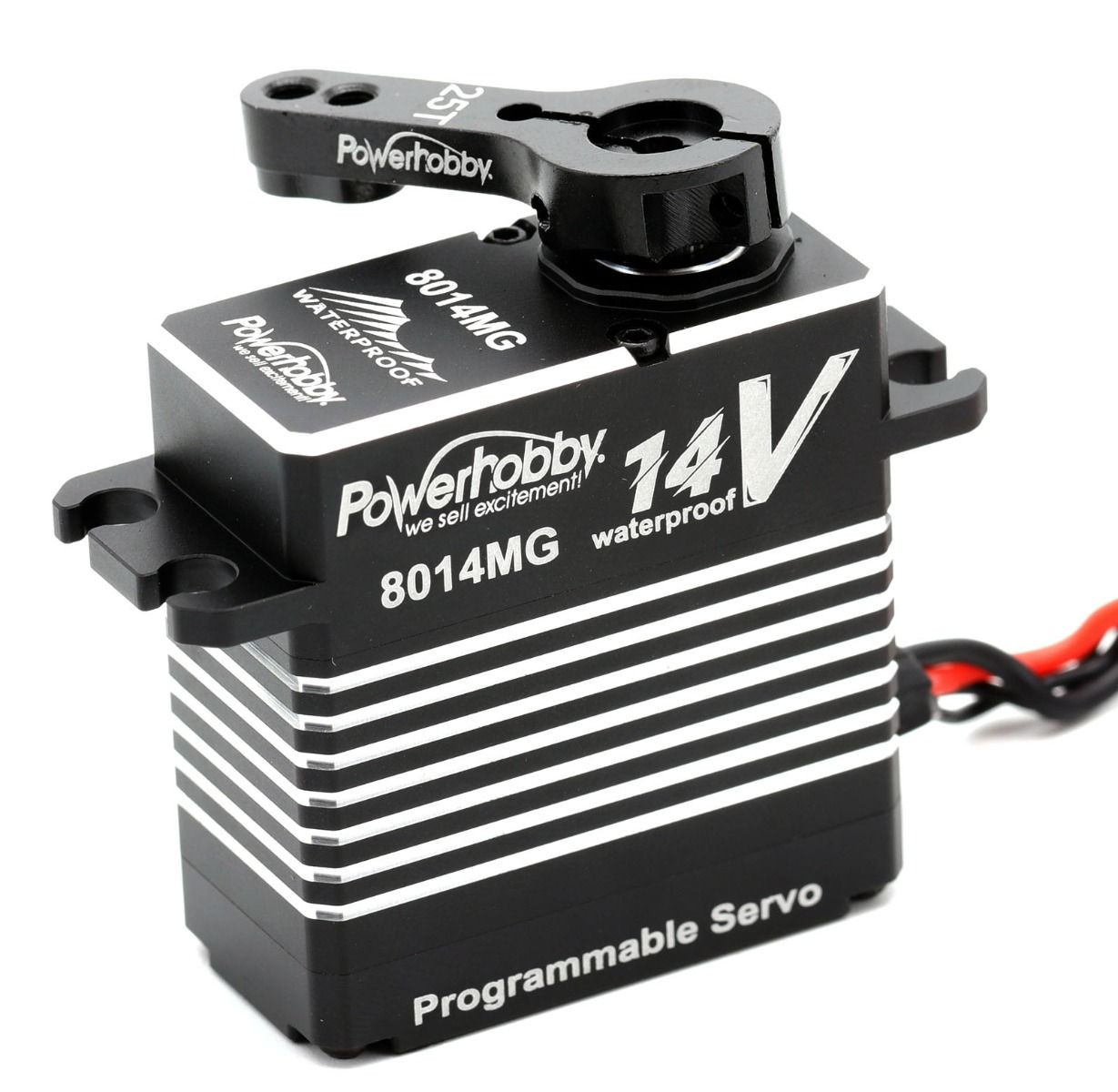

8014MG 14v Programmable Waterproof HV Brushless 3S
Aluminum Servo Horn and other hardware is included. 3s Lipo Connector aslo included.
This 14V Series Programmable Servo especially designed for higher voltage application, such as R/C Crawlers, 1/8 1/10 trucks/Cars, Airplanes, Boats, Robots etc...
WARNING: DO NOT USE OVER 14v. YOU WILL VOID YOUR WARRANTY.
Features:
Simplify- 3S Lipo high voltage application, available to connect with battery directly
Smooth- Three ball bearings to make it more powerful and smoother
Powerful- Extra strong steel gears and upgrade structure
Reliable- High quality brushless motor for longer servo life
Waterproof- High accuracy magnetic position sensor, allow to be used in humid or rainy situation
Precision- High precision CNC aluminum machined housing
Programmable- change the firmware for different usage (PowerHobby USB Required (Sold Separately))
Fully Waterproof
Specs:
Operating Voltage: 10v-14v
Operating speed: 0.13 sec/60 @ 11.1V
Operating speed: 0.12 sec/60 @ 12V
Operating speed: 0.10 sec/60 @ 14V
Stall Torque: 48kg - 666 oz-in @ 11.1V
Stall Torque: 57kg - 792 oz-in @ 12V
Stall Torque: 65kg - 900 oz-in @ 14V
Gear: Steel
Motor: Brushless
Size: 40*20*41.5mm (1.57 x 0.78 x 1.63 in)
Weight: 90g
Connector Wire: TYU 300mm / 22AWG
Spline: 25T
