Product Description
The MINI-Z RWD MR-04 series replaces the MINI-Z RWD MR-03 series. The MR-04 version RWD chassis is equipped with a revamped steering system that features optimized geometry and tighter clearance between moving parts. Also, the lower CG enabled by the lowest possible battery mount position ensures faster cornering speed and less chance of flip over. The RX unit is equipped with expansion ports for the optional gyro unit (MZW711) and LED unit (MZW429R), and the gyro effect can be adjusted by turning the small volume on the RX board. Comes complete with the KT-531P transmitter and full ball bearing specification, the MINI-Z RWD MR-04 provides users with higher value at the same price range.
Includes:
- Factory-assembled chassis equipped with KT-531P compatible Rx-ESC unit
- Painted and marked plastic body shell
- Tread width conversion parts
- Pinion Gears (6T, 7T, 8T, 9T)
- Front suspension adjustment spacers
- Pinion gear removal tool
- Spare wheel nuts
- Wheel wrench
- Wheels and tires
Required to Complete:
- 8 x AAA batteries
Features:

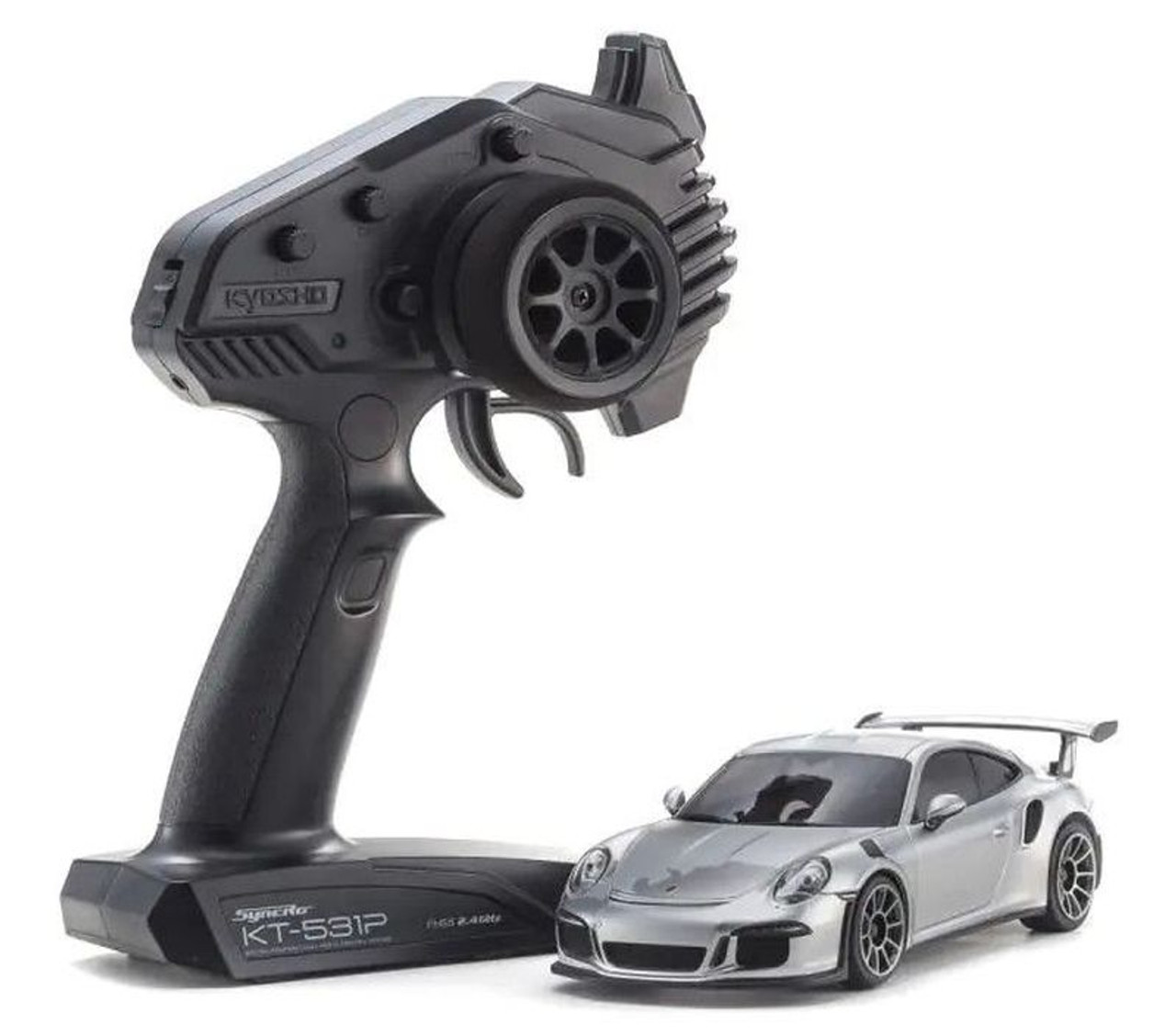

- KT-531P transmitter features steering trim, throttle trim, steering D/R, light flashing speed
- Soft foam steering wheel ensures delicate non-slip steering control.
- Full ball bearing specifications
- MR-04 Compatible chassis components
- Gyro socket and adjustment volume equipped.
- LED unit compatible with the body.
Specifications:
- Scale: 1/27.6
- Length: 168.0 mm
- Width: 72.0 mm
- Height: 48.0 mm
- Chassis Type: MR-04N-RM
- Wheelbase: 90.0mm
- Tread (F): 59.5mm
- Tread (R): 59.0mm
- Weight: 169g
- 130 class motor
- Gear Ratio: 7.3, 6.3, 5.5, 4.9:1
- Tire Diameter (F/R): 25.0mm/25.0mm
- Tire Width (F): 8.5mm
- Tire Width (R): 11.0mm
- Transmitter: included (KT-531P)
- Top speed: approx. 17km/h
- Runtime: approx. 50min.
