Product Description

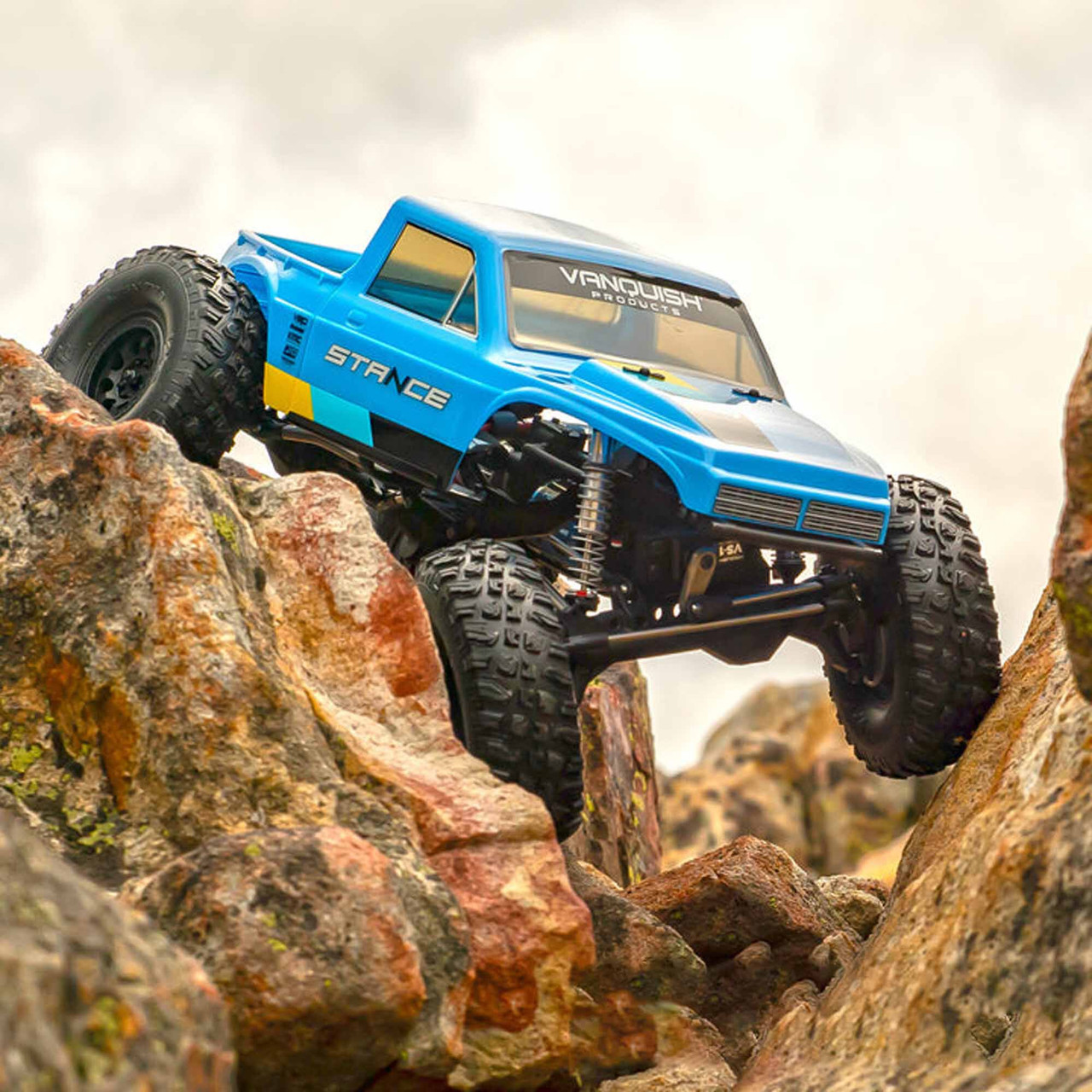

1/10 VRD Stance 4x4 Rock Crawler RTR, Progress Blue
The VRD Stance
The heart of the VRD Stance RTR are the stamped aluminum frame rails mated to the 6 degree flat skid plate and VFD transmission. The molded chassis components and skid plate place the VFD transmission as low as possible into the VRD chassis. The front F10 Portal axle is equipped with a servo on axle and 4-link. Front and rear axles include weighted brass tube inserts in addition to the front alloy knuckle weights to keep the center of gravity as low as possible, translating to a high performance driving experience. The Red compound VXT2 tires are supported by 4.75" VTS Stance Dual Stage foams. The Lexan Stance body is competition inspired with its short overhangs and pinched design for maximum tire clearance.
Chassis
The Vanquish Products VRD RTR chassis is equipped with all new molded chassis components that provide a tunable platform to adapt to the most demanding terrain. Multiple shock and body mounting positions combined with minimalistic front/rear interchangeable bumpers make body mounting and fitment straight forward. Stamped aluminum rock sliders provide a flat location for electronics and/or battery mounting and are able to support and protect your body.
Suspension
The VRD RTR includes the Incision S8E shocks. Stainless steel upper and lower suspension links connect the chassis to the axles with Incision M4 rod ends. The rear lower links are bent for maximum breakover clearance. Multiple shock mounting locations and tunable shock length allow for a high range of ride height and breakover adjustment.
Electronics
VT-1 Digital 4 Channel Transmitter provides industry leading features and tuning capabilities in an RTR. 15 model memory, multi-channel end point and rate adjustment, digital screen and multi-position switches for the 3rd and 4th channel.
VE-1 ESC is 3S LiPo capable and includes a strong BEC to power servo functions. The built-in jumpers can be moved to adjust LiPo cut-off and drag brake strength. Factory tuned for your VRD Stance RTR. The VE-1 ESC is our version of the Hobbywing 1060, one of the most trusted RTR ESC’s on the market.
VM-1 35T Brushed motor is a closed endbell design tuned for the VRD Stance RTR to provide trail torque with plenty of speed to conquer the roughest terrain with confidence.
VS-1 Metal Gear Servo tackles the steering duty on the VRD Stance RTR with 200oz-in of torque. Ready for all elements the VS-1 Servo is water resistant and durable with its metal gears and 25T output spline for industry standard servo horns.
Features
- Stamped Aluminum Frame Rails - 6 degree flat skid plate
- Stance Pre-Painted Lexan Body
- 24% Overdrive
- F10 Portal Axles
- Brass weight tubes in axles
- Alloy heavy portal knuckle weights
- Front Axle Overdrive Portal gears
- Rear Axle Standard Portal Gears
- Full Metal Gear Drivetrain
- Chromoly Universal axle shafts
- Incision S8E Shocks
- Stainless Steel Links with Bent rear links
- Incision M4 Rod Ends
- Stamped Aluminum Rock Sliders
- Adjustable multi point body mounting system
class="img-fluid">
F10 Portal Axles
The F10 Portal Axles are widely praised for their exceptional durability, precise engineering, and smooth performance, making them a top choice among enthusiasts.
class="img-fluid">
Low Center of Gravity
Function forward design utilizing Aluminum Flat Rail Chassis and an angled skid plate for a performance focused layout. Equipped with molded chassis parts offers a customizable base to adjust to challenging terrain. Various shock and body mounting locations with simple front/rear bumpers ensure easy body installation and alignment. Low mounted electronics and battery paired with a forward bias motor position enables you to optimize your build for top performance.
class="img-fluid">
Strength & Tunability
The VFD is designed for optimal performance, scale appearance, strength, and versatile accessories. It positions the motor forward and low for ideal weight distribution. The VFD Spec transmission offers a 6.5% overdrive for improved turning and climbing without stressing electronics. The T-case features replaceable bearing plates for adjustable positioning and optional gear ratios. Compatible with 540 brushed and brushless motors. The VFD transmission has wide metal gears inside for strength in the areas that count. The option to build the VFD transmission with a variety of option parts allows you to tune the performance to your needs.
class="img-fluid">
Suspension
High clearance, low center of gravity. The VRD Stance RTR was designed to deliver the ultimate out of the box RTR trail driving experience. The VRD utilizes Incision 90mm S8E shocks with 8mm bore aluminum threaded bodies, dual X-ring seals, locking preload collars, keyed spring cups, and polished steel shock shafts. The front 4-link with suspension with servo-on-axle prioritizes steering effectiveness. Stainless steel links ensure low weight and durability.
class="img-fluid">
Dual Stage Performance Foams
Mounted inside VXT2 red compound tires, a proven competitor on the rocks.
