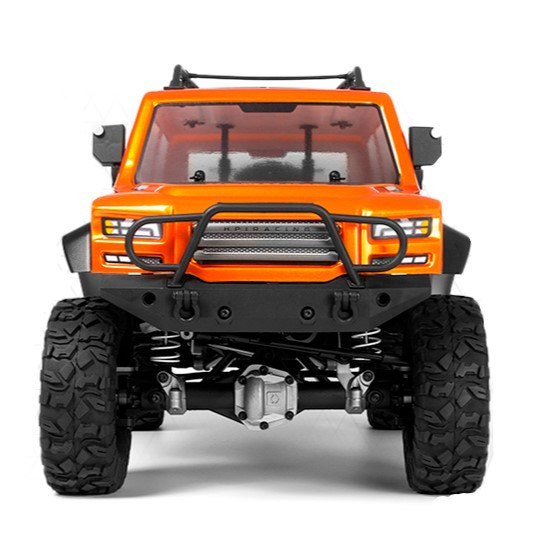

The HPI Venture Wayfinder is an RC trail truck that embodies the spirit of exploration, ready to traverse mountains, streams and beyond. It's not just a vehicle, it's a trusted ally for your weekend jaunts or grand explorations! Combining a realistic front-motor position and formed steel C-channel chassis rails with a realistic suspension and drivetrain results in a unique off-road experience HPI is proud to provide. The Wayfinder body is meticulously crafted in a vibrant metallic Orange featuring black accents that embellish the arch extenders and sills creating a striking contrast. Clear windows provide a realistic look, adding an extra layer of authenticity to the model. With front and rear bumpers, mirrors, a functional roof rack, and a swing-away spare tire mount, the Venture provides an authentic trail experience. Several previous model optional parts are now standard equipment, including the Aluminum lower link set, Aluminum rear 4 link and Universal front driveshafts. The vehicle's performance is further enhanced by authentically scaled oil-filled shock absorbers and full-time locked differentials, and realistically treaded tires, ensuring dependable handling in all off-road conditions.
Includes:
- NiMH battery and charger
- 4 x AA batteries
Features:
- Hand-painted polycarbonate Wayfinder body
- Functional roof rack
- Side mirrors
- Front bumper features brush guard, light mounts and D-ring shackles
- Rear bumper features swing-away spare tire mount and D-ring shackles
- Adjustable rock rail side
- Formed steel C-channel chassis rails
- Front Universal Driveshafts
- Front-mount motor and transmission
- Front weight bias
- Parts for all three battery positions are included with the Wayfinder
- All-metal gear drivetrain
- Central transfer case with slider driveshafts to front and rear differentials
- Axles feature small diff case size for best possible ground clearance
- Aluminum differential cover
- Locked differentials
- 12mm aluminum hex hubs
- Multiple shock mounting positions
- BTA (Behind The Axle) steering
- Panhard bar
- Zero Ackermann high steer knuckle
- 3-link front and triangulated 4-link rear suspension
- Oil-filled aluminum coilover shocks with adjustable threaded shock bodies
- Dual-stage shock springs
- Aluminum lower link/shock mounts
- Aluminum panhard mounts
- CMS (Chassis Mounted Servo)
- Adjustable body mounts
- Fully braced rear body mounts
- All-terrain Rockthorn soft S-Compound tires
- CR-10 ten-spoke 1.9" wheels
- HPI 35-turn crawler spec motor
- HPI waterproof SC-3SWP3 Crawler Edition adjustable electronic speed control
- HPI water-resistant SS-30MGWR steering servo
- HPI 2.4GHz radio system with carry handle
- HPI 2.4GHz receiver in a protective case
- Full set of ball bearings
Specifications:
- Length: 527mm (20.7")
- Width: 227mm (9")
- Height: 238mm (9.4") with roof rack, 217mm (8.5") without
- Wheelbase: 311mm (12.3")
- Front overhang: 101mm (3.9")
- Rear overhang: 135mm (5.3")
- Running weight: 2.4kg (5.3lbs)
- Weight without battery: 2.1kg (4.7lbs)
- Body Weight: 0.21kg (7.44oz)
- Break-over angle: 44.5 degrees
- Approach angle: 55 deg
- Departure angle: 45.5 deg
- Max climb angle: 49 deg
- Max tilt angle: 28 deg
- Axle articulation: 30 deg
- Ground clearance 68mm capable: (2.7")
- Ground clearance at standard ride height 60mm: (2.4")
- Axle ground clearance 32mm: (1.3")
- Drivetrain ratio: 7.6:1
- Transmission gearing: 1.53:1
- Axle gearing:
