Product Description

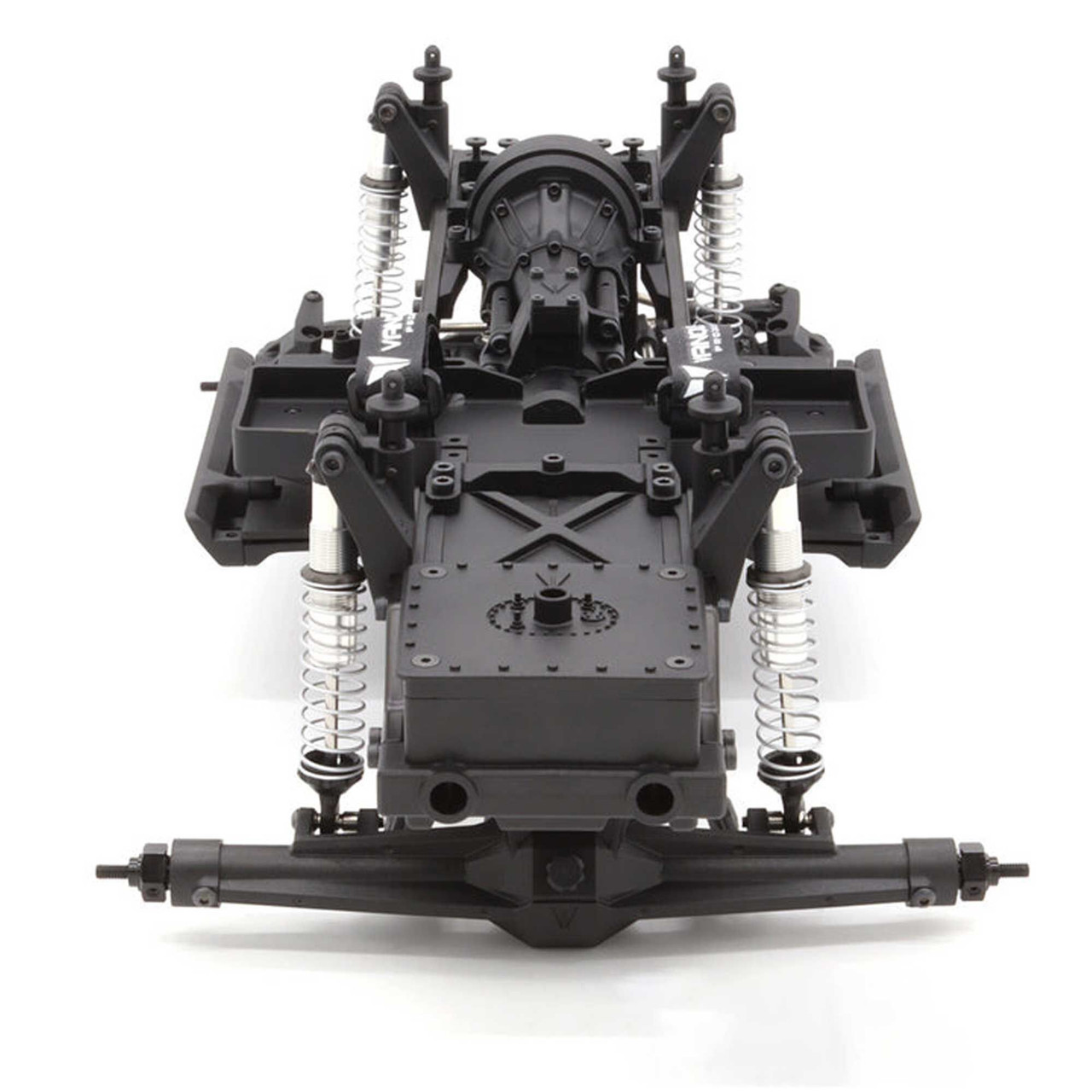

1/10 VS4-10 Straight Axle 4x4 Rock Crawler Builders Kit
Drivetrain
The VS4-10 Builders Kit features the Vanquish Products VFD transmission and F10 straight Axles. The molded F10 Straight Axles utilize a high clearance design which minimizes the size of the pumpkin and maximizes strength around the C-hub and knuckle. Connecting the VFD to the F10 Straight Axles are the ISD10 driveshafts. The ISD10 Driveshafts have machined CV style joints at each end with molded splined shafts between them for smooth and efficient performance.

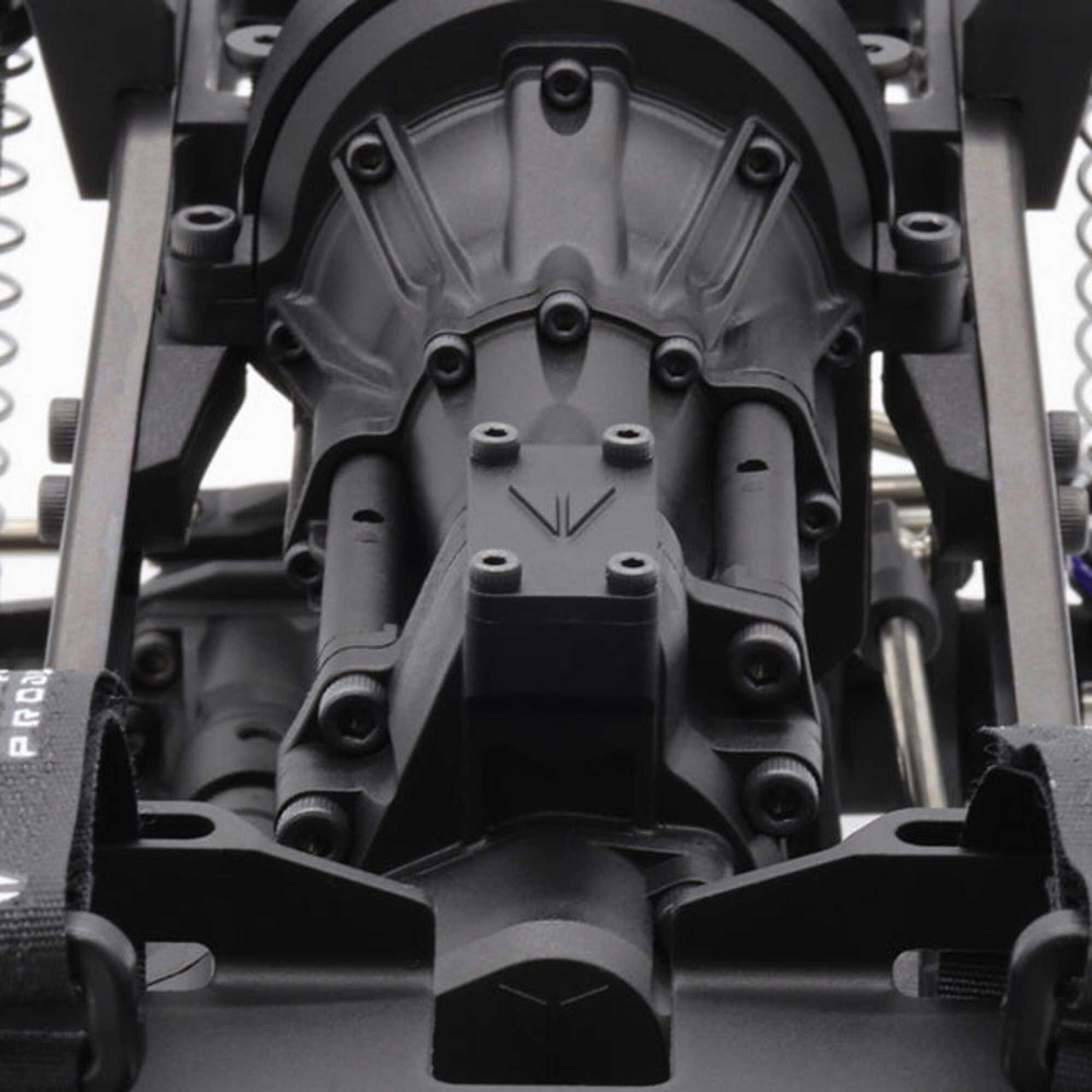

VFD Transmission
The VFD is designed to provide an optimal balance of performance, scale appearance, strength and versatile optional accessories. The VFD’s design places the motor forward and as low as possible to keep the weight where you want it. Out of the box the VFD Spec transmission provides a 6.5% overdrive to provide better turning and climbing performance without taxing your electronics. The T-case utilizes unique replaceable bearing plates to provide adjustable bearing positioning. The modular design of the bearing plates allow for optional gear ratios to be used inside the T-case. The VFD transmission is compatible with 540 brushed and brushless motors.

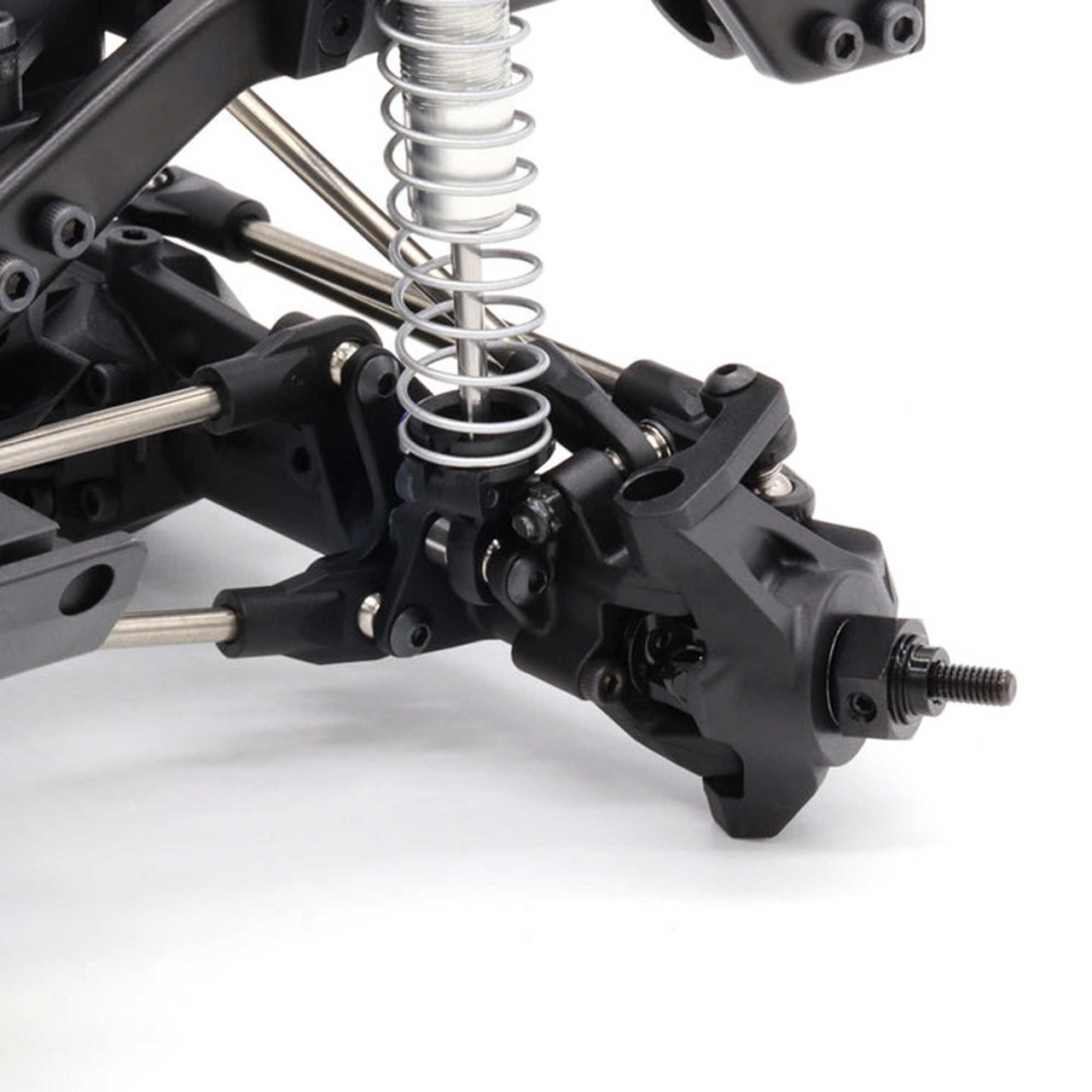

F10 Straight Axles
The F10 Plastic Molded Straight axles benefit from Vanquish Product’s years of design experience in making the industry’s best aluminum axles. The molded F10 Straight axles feature an ultra rigid design with an integrated truss that ties both ends of the axle together, and oversized C's with an integrated panhard mount.
Chassis

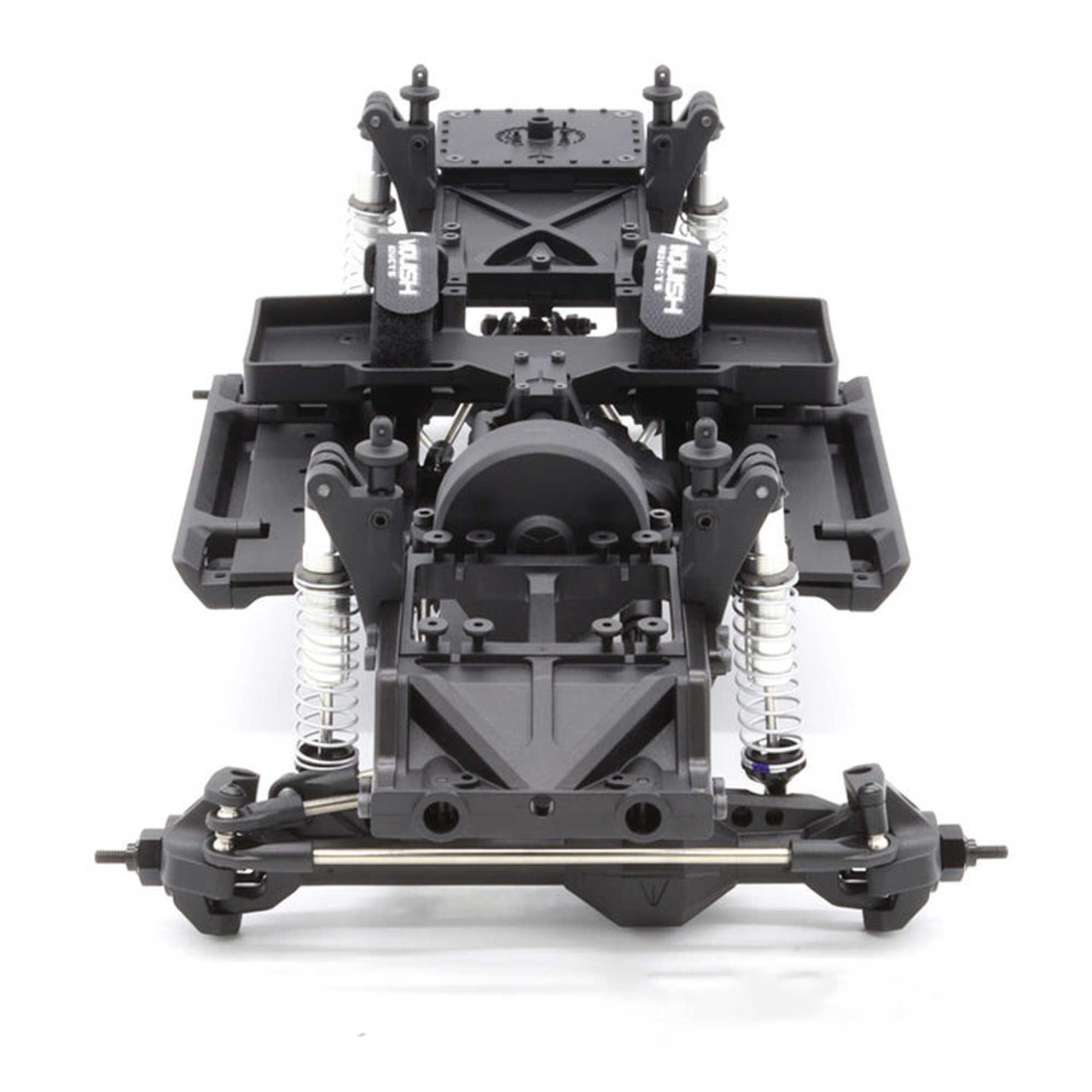

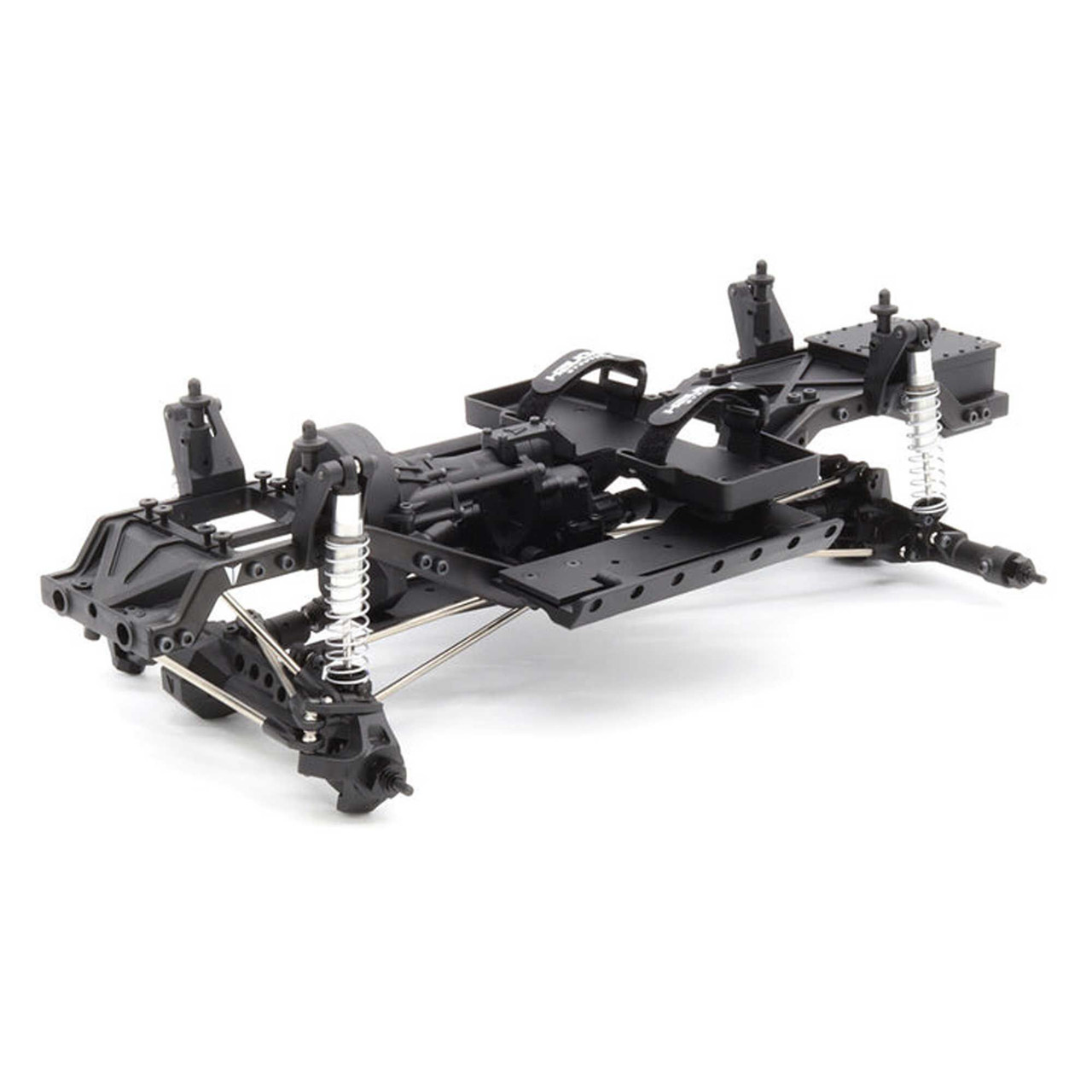

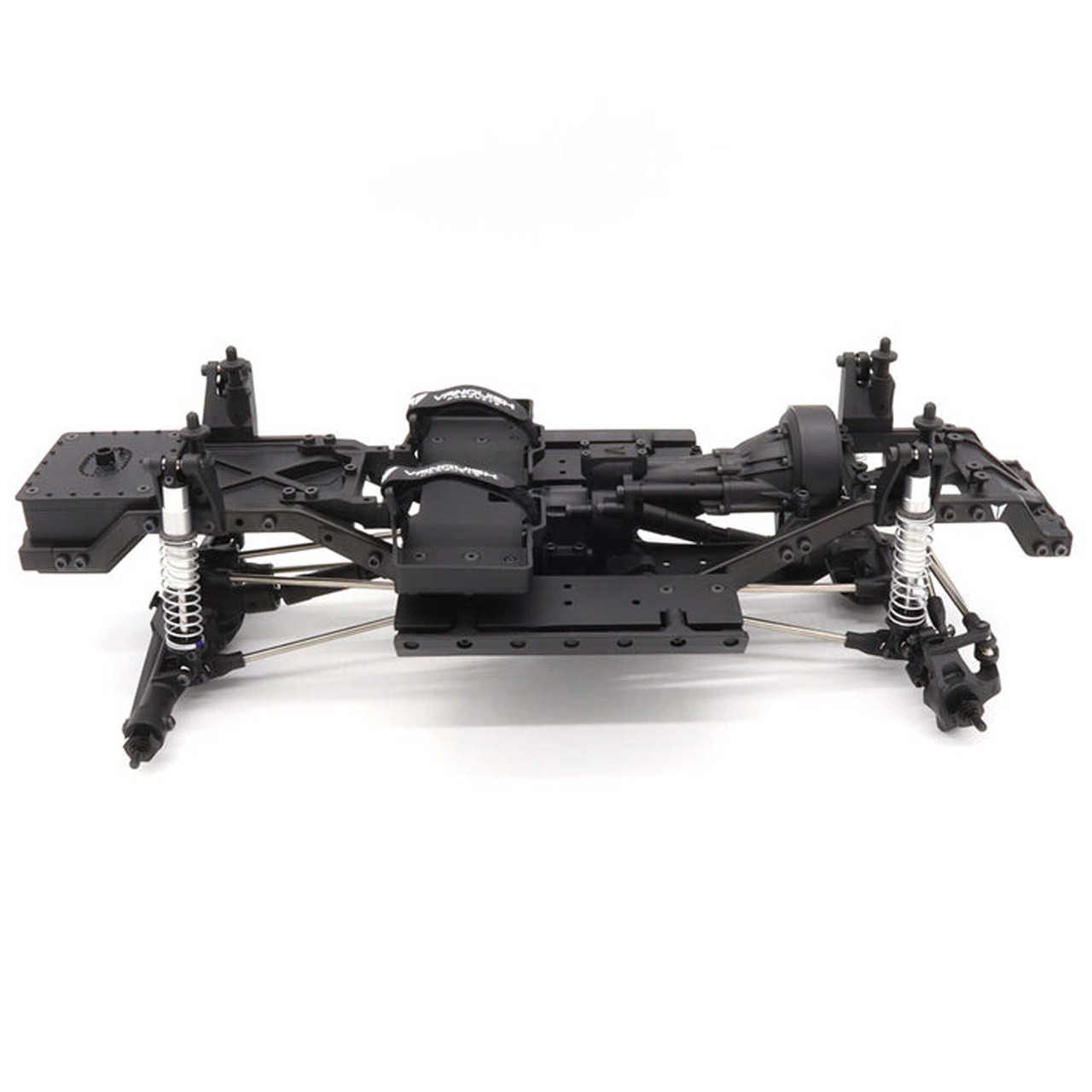

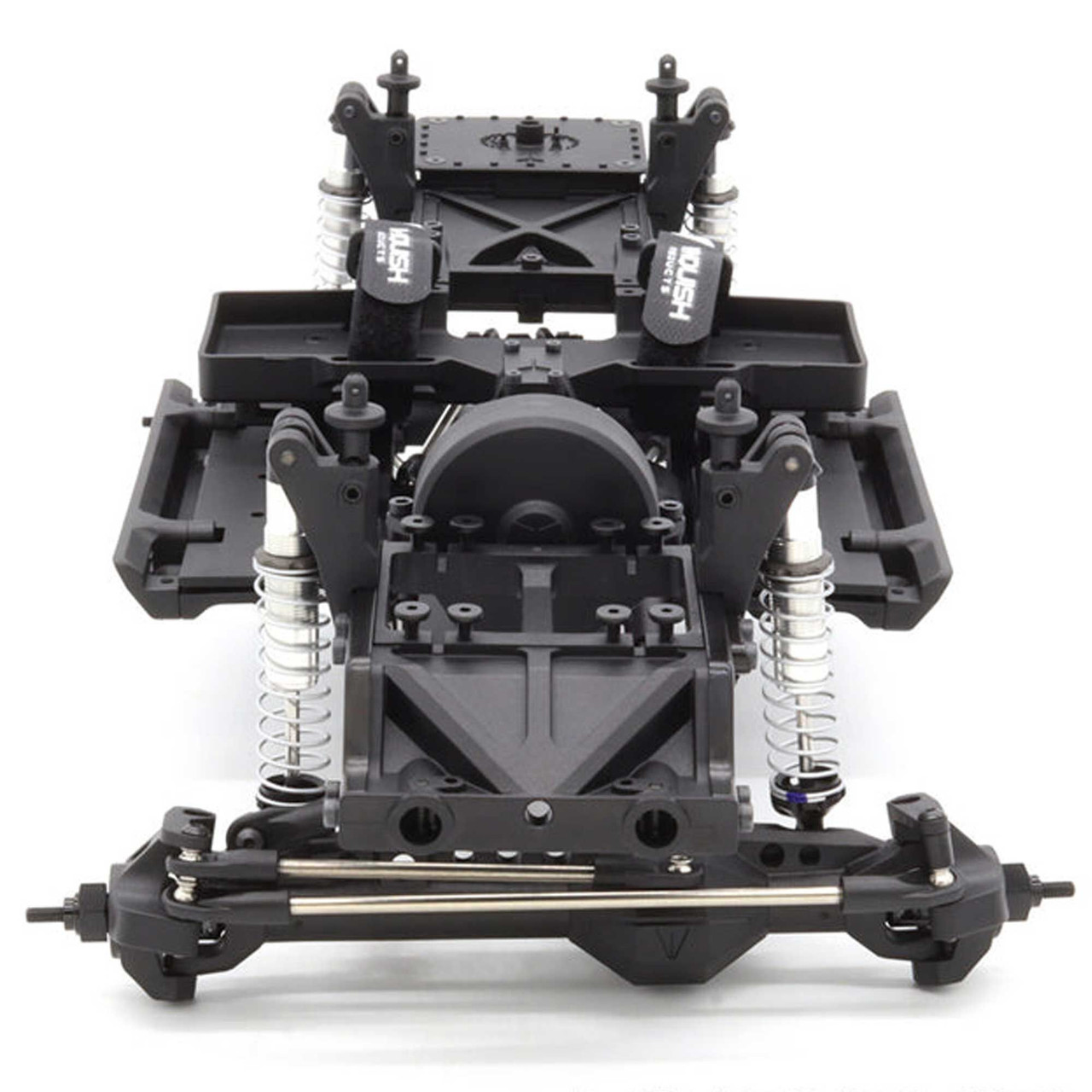

Vanquish Products VS4-10 Chassis is made to provide you with a balance of scale looks and unhindered performance. The steel C-channel design provides scale detail, molded front and rear cross members fill the chassis rails in the highest stress locations for ultimate strength and provide features like dual servo mounts, winch line routing, and a fuel cell. The molded rock sliders come with a replaceable outer portion. The panhard mount on the chassis is made from machined aluminum to withstand the impacts of severe trail conditions. Molded shock towers capture the top of the 90mm Incision S8E Shocks in double shear for maximum support.
Suspension

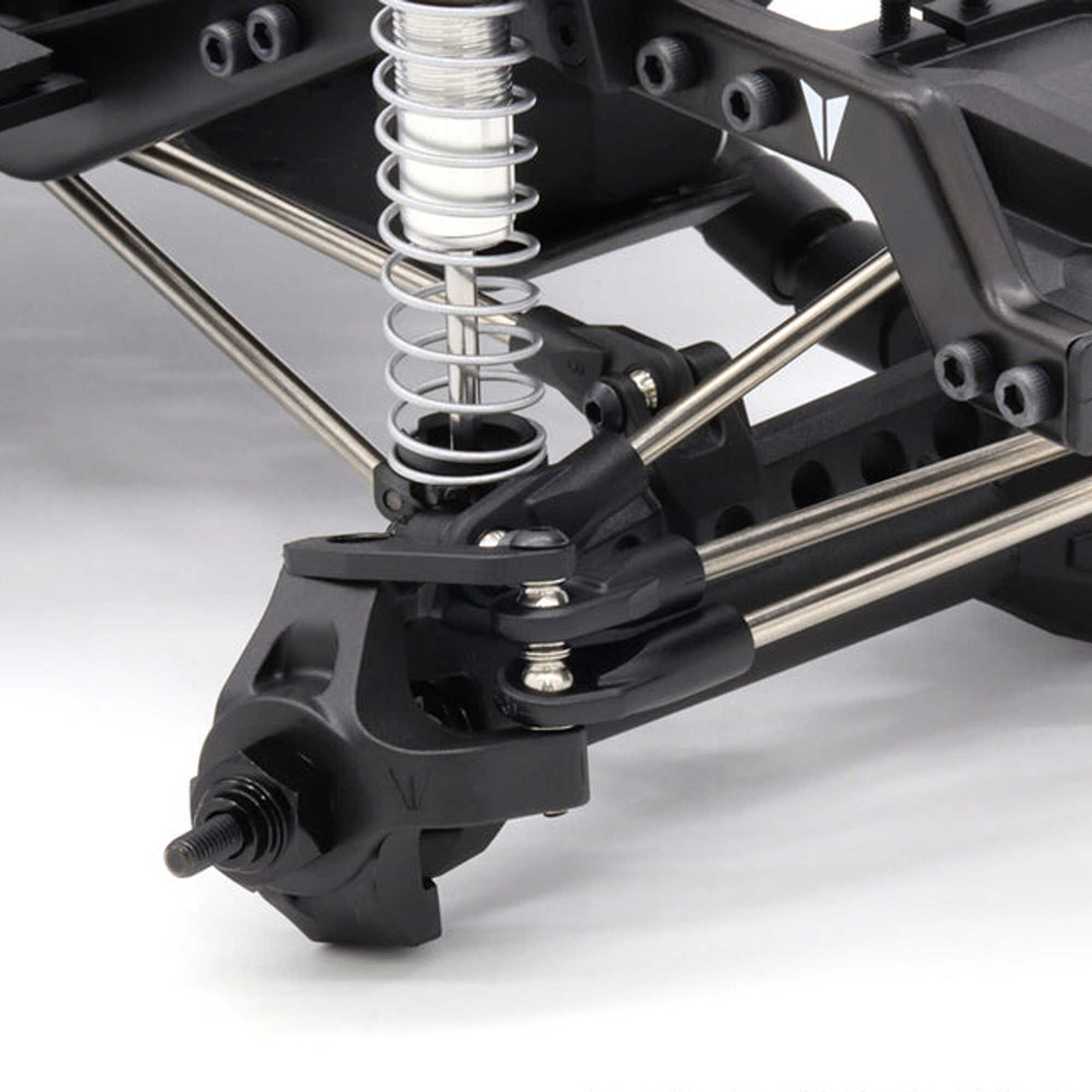

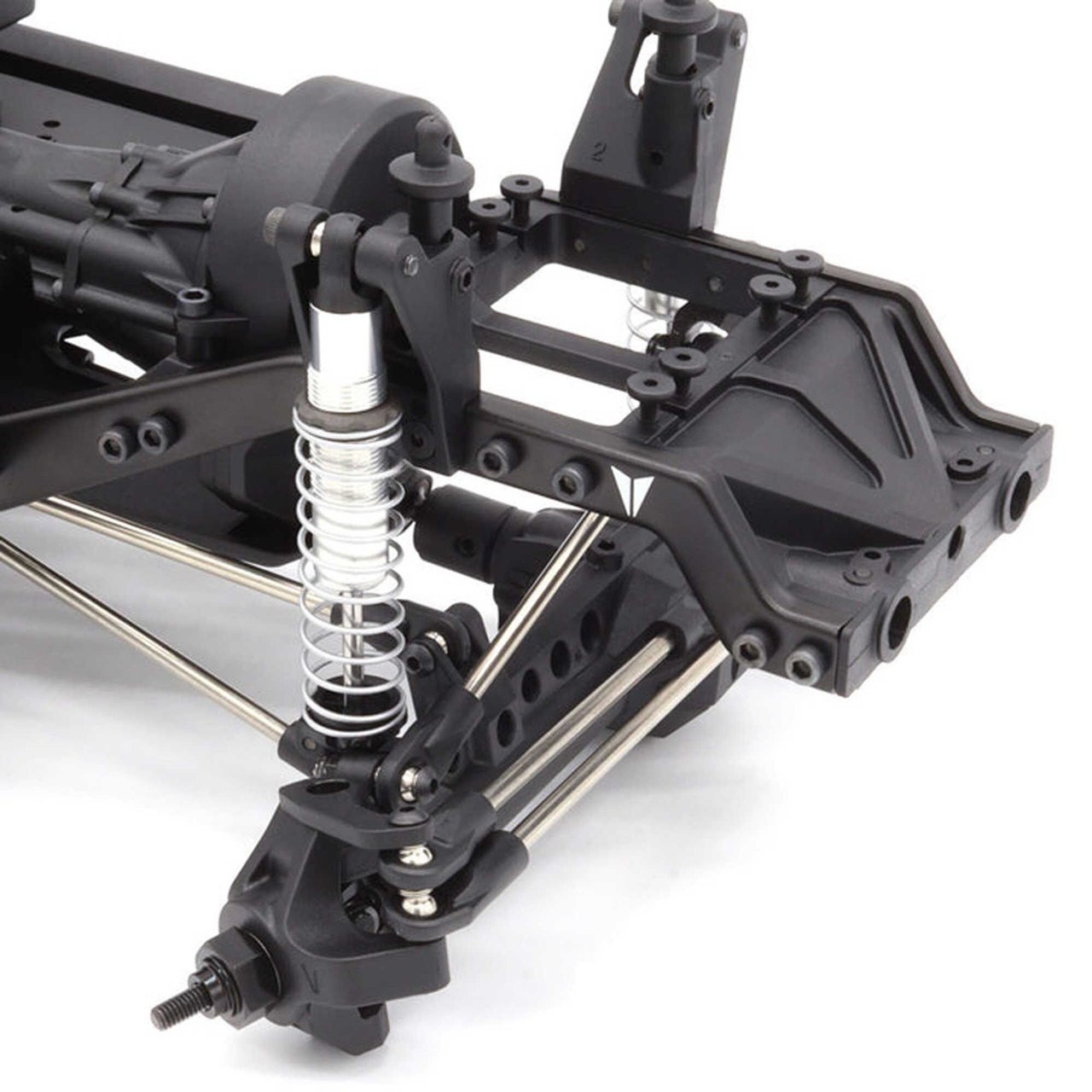

The VS4-10 features Incision 90mm S8E shocks with larger 8mm bore aluminum threaded bodies, dual X-ring seals, locking preload collars, keyed spring cups, polished steel shock shafts, and machined pistons. The front 3-link with panhard suspension provides scale looks by keeping the servo out of sight, while still providing room for full suspension travel. The suspension pivots on a full set of stainless steel links to keep the weight down low with a smooth transition from the link to the rod ends.
S8E Scale Shocks
The Incision S8E Scale Shocks feature a larger 8mm bore for increased damping. The increased volume reduces internal shock pressures for longer seal life. Dual molded X-Ring lower shock cartridge provides more sealing surfaces than standard o-rings. Threaded shock bodies allow for a wide spring preload range. Offset lower shock pivot balls allow for greater flexibility for tuning shock angles.
Drivetrain Features
- VFD Transmission
- F10 Straight Axle Housings
- Offset Pumpkin Front Straight Axle
- Centered Pumpkin Rear Straight Axle
- Universal-style front axle shafts
- Double Shear Shock Mounts
- ISD10 Driveshafts
Transmission Features
- Standard Overdrive 6.5%
- Sintered Internal Gears
- Hardened Chromoly Shafts
- Molded VFD Extended Skid Plate for Motor Protection
- Molded Battery and Electronic trays
- Full ball bearing transmission
- Scale Molded Transmission Housing
- Molded 6mm motor plate
- Molded Spur Gear Cover
- 32P 56T Spur and 13T Steel Pinion
Axle Features
- Molded Plastic Axle housings
- Universal Style Axle Shafts
- 49 Degrees of Steering
- High Caster reinforced C-Hub
- High-Pinion Hypoid Axle Gears (30/8)
- One-Piece Molded Bearing Retainers
- Adjustable Lower Shock Mounting Position
- Scale removable third member
- 5mm Output shafts with M4 wheel nut
Chassis Features
- Heavy Duty High Clearance Steel C-Channel Frame Rails
- Integrated battery tray and electronic mounting positions
- Stainless Steel links
Suspension Features
- SC8E Incision 90mm Shocks with bleeder screw shock cap
- Stainless Steel Links
- Stainless Steel Pivot Balls
- Stainless Steel offset lower shock pivot balls for tuning shock width at axle
Shock Features
- 8mm Bore Scale Shocks
- Includes IRC00523 S8E Shock Tuning Rod End Set for +5mm, 0mm, and -5mm shock tuning options
- Threaded shock bodies
- Scale shock cap with steel pivot ball and bleeder screw
- Polished Shock shafts
- Dual X-Rings
class="img-fluid">
F10 Straight Axles
The F10 Straight Axles are widely praised for their exceptional durability, precise engineering, and smooth performance, making them a top choice among enthusiasts.
class="img-fluid">
VFD Transmission
The proven VFD transmission is equipped with 6.5% overdrive. Providing a low and forward motor position with a protective skid plate along the front of the skid plate.
class="img-fluid">

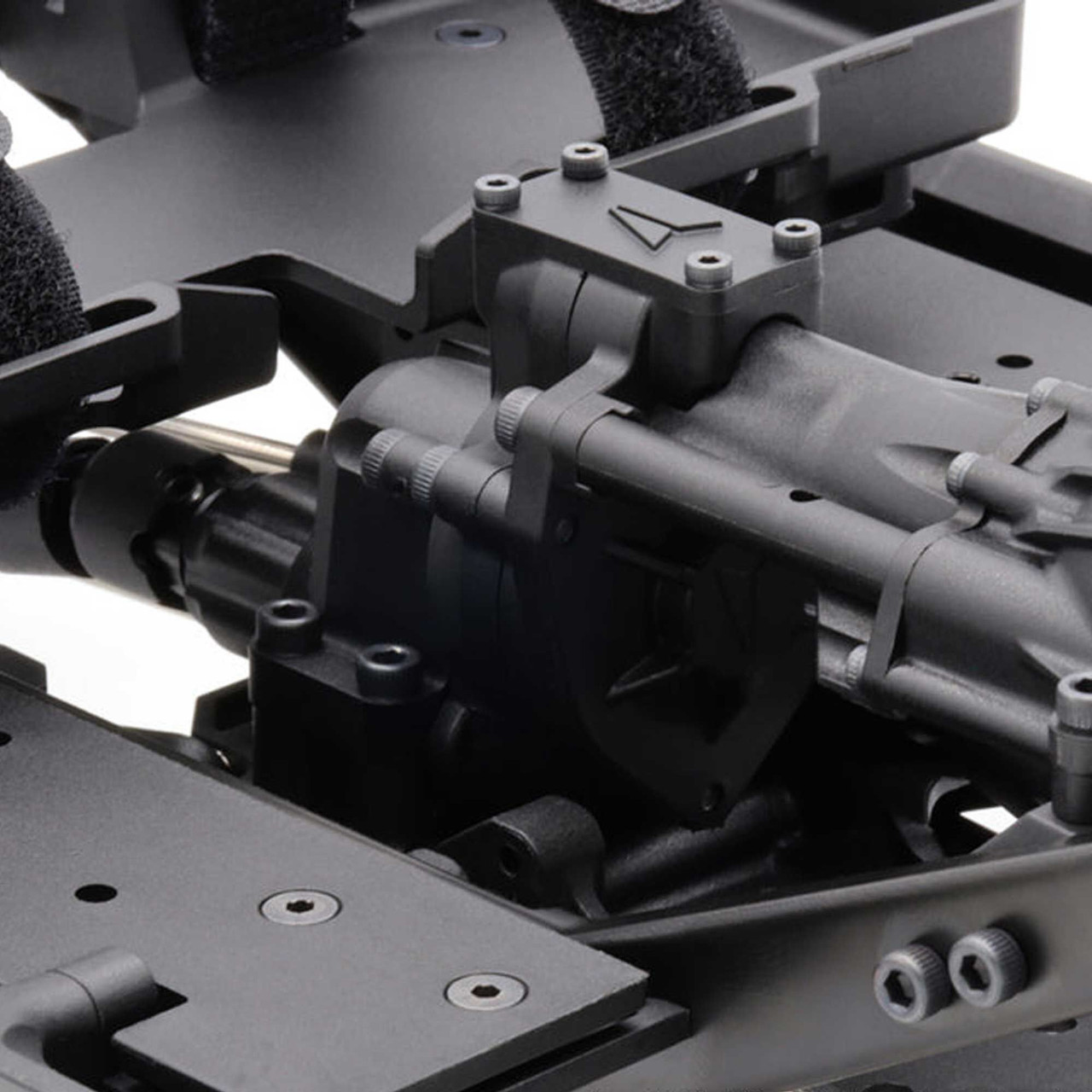

Overdrive Transfer Case
Full ball bearing and metal gears provide strength and longevity for worry free performance.
class="img-fluid">
Universal Joint Axle Shafts
VDI Front axle shafts provide 49° of steering angle.
class="img-fluid">

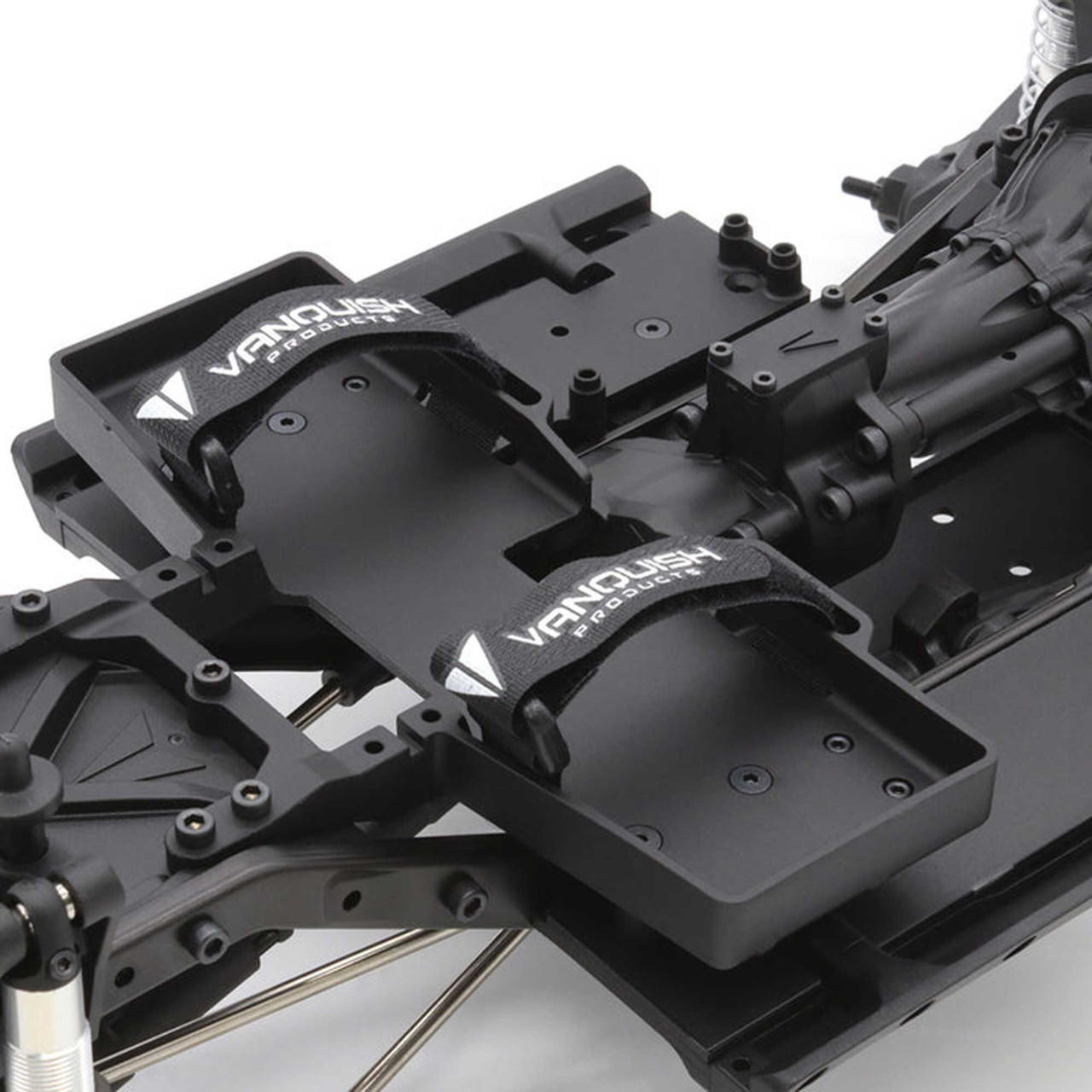

Secure Battery Storage
The versatile battery tray accommodates most batteries, including hard case LiPo and standard stick pack sizes, ensuring a perfect fit for your needs.
class="img-fluid">
VS4-10 Chassis
The VS4-10 Chassis brings unmatched rigidity, superior build quality, and a versatile design, making it a popular choice for a wide range of projects.
class="img-fluid">
Strength and Tunability
The VFD transmission has wide metal gears inside for strength in the areas that count. The option to build the VFD transmission with a variety of option parts allows you to tune the performance to your needs.
class="img-fluid">
Capability
A proven combination of 3-link with panhard front suspension and triangulated rear suspension will allow your custom project to perform as good as it looks. The high clearance chassis and 90mm S8E shocks will give you the flexibility and predictability to conquer the terrain.
