Product Description

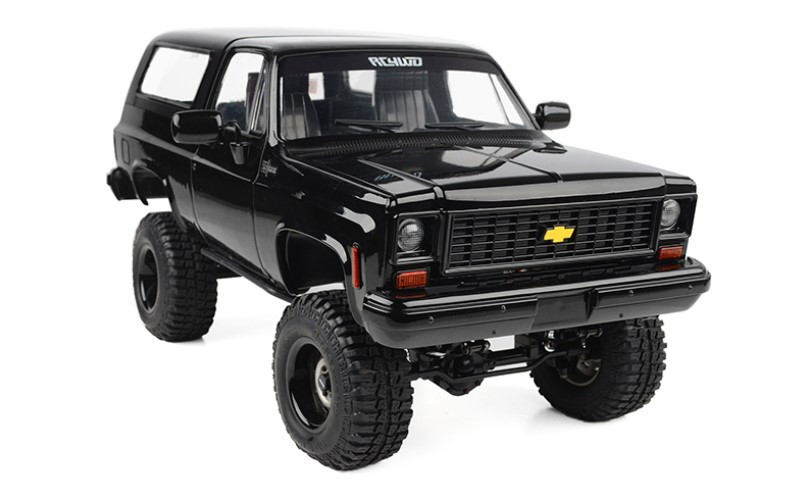

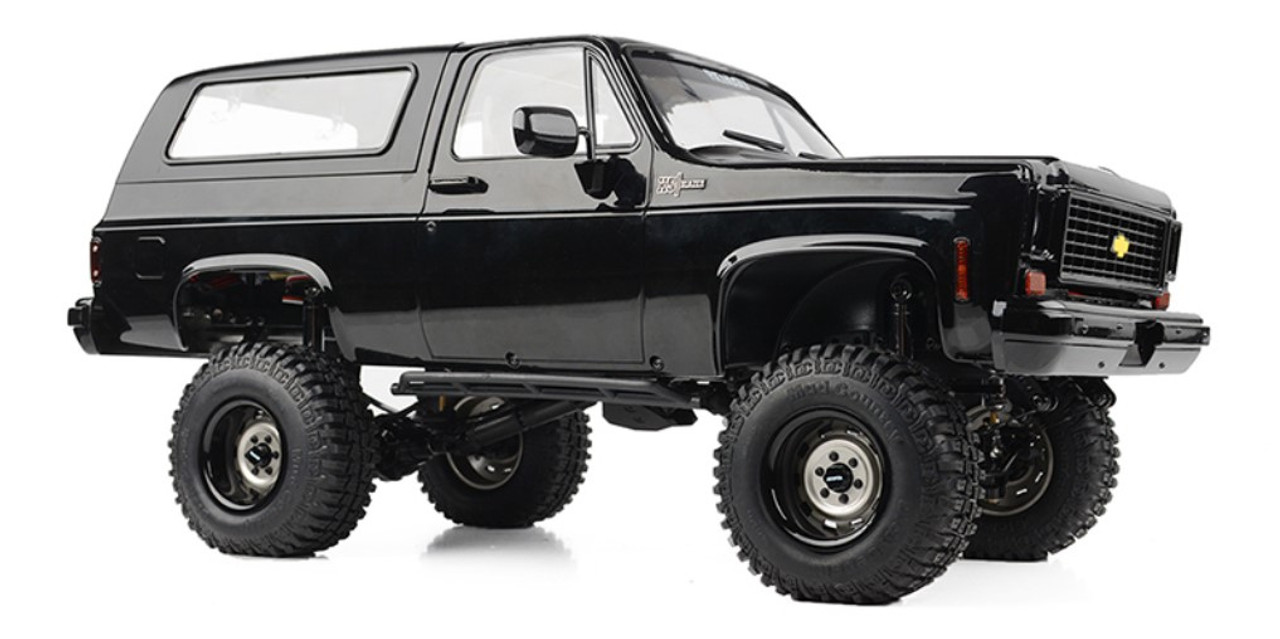

Trail Finder 2 RTR w/Chevrolet Blazer Body Set (Midnight Edit
This RTR comes with a unique, custom-painted Chevrolet Blazer Hard Body that features an assortment of scale details including mirrors, door handles, and interchangeable grille options!
The body is constructed of durable hard plastic with a classic shape that replicates the full-size model with accuracy and authenticity.
With realism in mind, the body features a molded, realistic drop bed and an opening hood and tailgate. Also includes a removable matte topper that contrasts the glossy look of the body!
Included are black finish parts and colored lenses for all signal lights! Typical chrome trimming now comes blacked out.
The ladder frame design of the Trail Finder 2 Chassis is made with CNC machined, billet aluminum and comes with scale shock hoops, a chassis servo mount, and transmission and transfer case mounts.
The K44 Ultimate Scale Cast Axles feature high steer knuckles, XVDs, lower mounting points, and a compact offset front pumpkin.
The driveshafts found on the Trail Finder 2 Chassis feature heavy-duty uni-joint metal shafts for great driveline angles and durability on the trail.
Features:
- All-black-everywhere approach
- Chrome finish from the trim and accessories blacked out
- Matte finish Topper
- Opening hood
- Engine bay comes with a pre-installed dress-up kit and painted parts
- Tuned Trail-ready suspension parts
- Updates rear shock towers allow for longer shocks
- Installed LED Light Set
- Molded Inner Fender Liners
- Custom-painted Rally wheels
- Dick Cepek 1.9" Mud Country Scale Tires
Specifications:
- Hammer Transfer Case
Ratio: 1.47:1
Gears: Wide .8 Mod Hardened Steel Gears
Features: 8 Bearings, Cast Casing, Hardened Gears - R3 Scale Single Speed Transmission
Ratios: Pinion/Spur 14/64 = 1:4.57
Internal Ratio: 1.78:1
Gears: Wide Steel .8 Mod, Delrin Spur, Slipper Clutch - K44 Ultimate Scale Cast Axles
Ratio: 2.67:1
Hex To Hex Width: 177mm (6.96") - Shock Absorbers
The Ultimate Scale Shocks (80mm) (Chrome)
Titanium Nitrate Coated Shock Shafts
New X-Ring Technology 54mm (2.14") - Wheels
Type: Rally 1.9" Beadlock Wheels (Black)
Hub: 12mm Hex
Width: 33mm (1.29")
OD: 54mm (2.14") - Tires
Type: RC4WD Dick Cepek 1.9" Mud Country Scale Tires
Outer Diameter: 100mm (3.95")
Width: 38.9mm (1.53")
Inner Diameter: 48mm (1.9") - Trail Finder 2 Truck Dimensions
Wheelbase: 287mm (11.3")
Width: 221mm (8.7")
Height: 236.8mm (9.3")
Ground Clearance: 61.9mm (2.4")
Final Drive Ratio: 31.9:1
