Product Description
1/10 RC Suzuki Jimny JB23 Kit, w/ MF-01X Chassis TAM58614-A

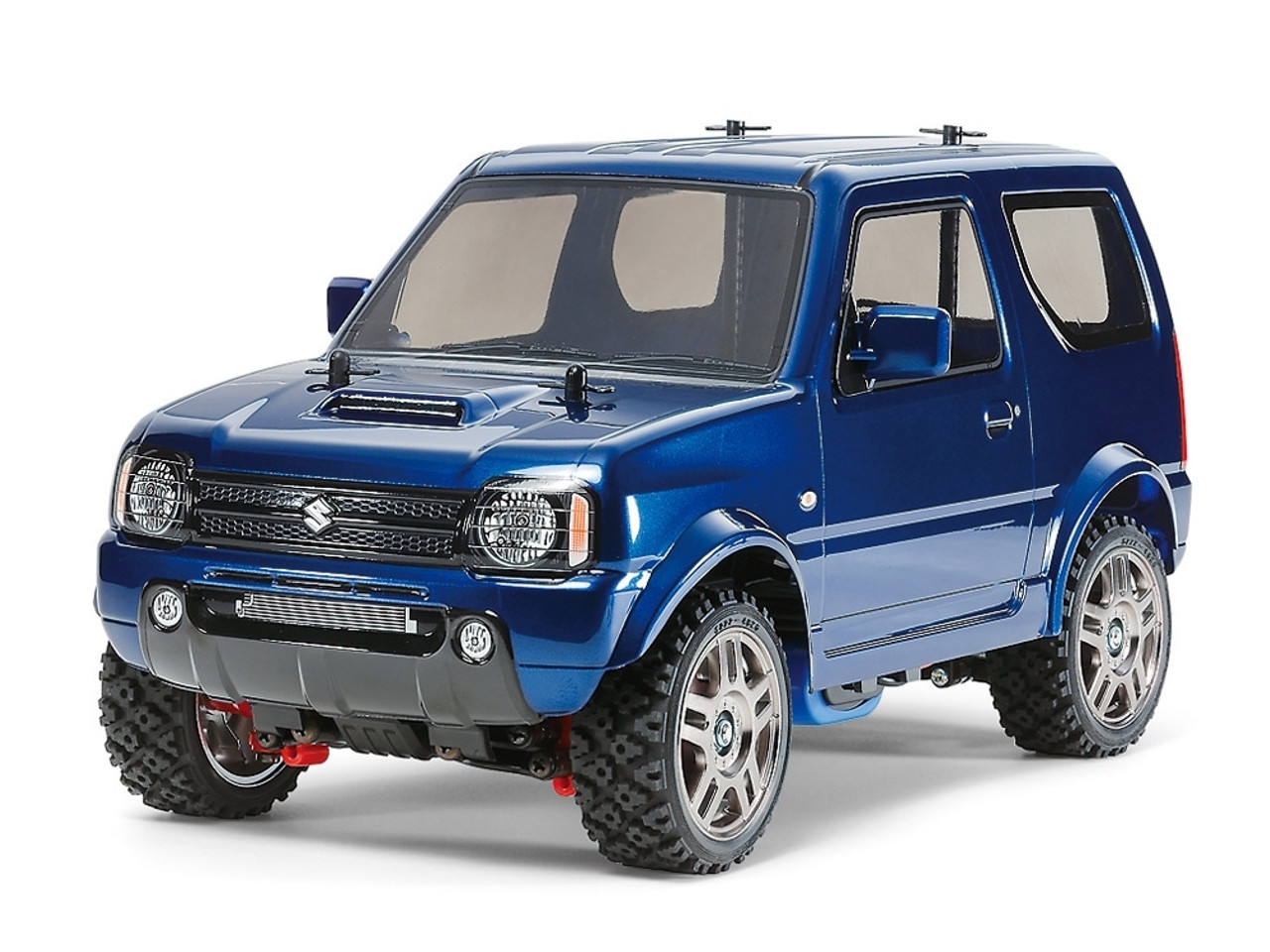

The MF-01X is a compact chassis set to revolutionize the M-Chassis genre, and the all-important first model on this platform recreates the legendary Japanese off-roader, the Suzuki Jimny. The Jimny, of course, has been on sale as one variant or another since 1970, gaining numerous fans thanks to its versatility and toughness. The JB23 depicted by this model is one of the 3rd generation Jimnys introduced in 1998 which had a modernized, rounded body design. It featured a feisty little fuel injected, turbocharged 658cc engine and was a popular car in the domestic Japanese market.
Key Design Points:

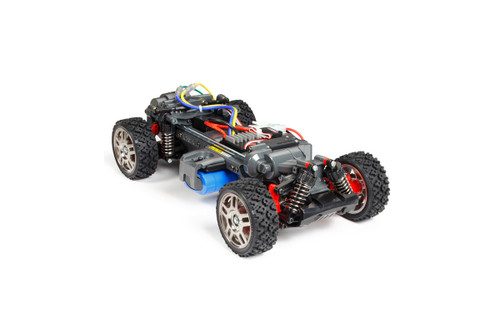

Power is transmitted from the rear mounted motor to the front wheels via a propeller shaft that runs down the side of the MF- 01X. Gearboxes are integrated into the monocoque for a sturdy and easy-to-assemble structure.
The MF-01X has a three-section make-up; changing the central spacer section enables short (210mm), middle (225mm), and long (239mm) wheelbases. Item 58614 uses a middle wheelbase; option parts Item 54654 is needed to change to a short wheelbase, and Item 54655 when changing to a long wheelbase.
Required to Complete: 2-channel radio, steering servo, 7.2volt battery and battery charger, and Tamiya PS paint.
Features:
- Power from the rear mounted motor is transmitted via gear diff to the rear wheels, and propeller shaft to the front diff
- Smooth damping is provided by the 4-wheel independent double wishbone suspension in tandem with friction dampers.
- The monocoque frame is divided into 3 pieces. Change the central spacer block and fit a separately-sold prop shaft for S (210mm), M (225mm) or L (239mm) wheelbases.
- Rally Block tires are supplied with the kit, to give the model excellent grip and performance on flat dirt surfaces.
Specifications:
- 1/10 scale shaft-driven 4WD multi-terrain model assembly kit.
- Length: 347mm, Width: 170mm, Height: 215mm, Wheelbase: 225mm (M)
- Chassis Type: MF-01X
- Chassis Material: ABS Plastic
- Adjustable Gear Ratio: Yes
- Bearings: Plastic bushing
- Body Material: Polycarbonate
- Body Stickers: Included
- Differential Type: 3-Bevel Differential Gears
- Electronic Speed Control (esc): Includes HobbyWing THW 1060 Brushed Motor ESC (2-3S)
- Motor: 540-brushed type
- Shock Damper: Friction type
- Suspension: Fully Independent Double Wishbone
