Product Description
RC 1991 Audi V8 Touring TT-02 1/10 Touring Kit
Item shown assembled and painted for illustration purposes. Item is sold as kit, assembly required.
This Tamiya R/C kit recreates the classic Audi DTM racing car as raced during the DTM 1991 season. The Audi V8 touring car had a 456hp 3.6-liter V8 which graced the DTM (Deutsche Tourenwagen Masters) racing series in Germany. In that season, it took four victories overall and carried Frank Biela to the drivers title.
The shaft driven 4WD TT-02 chassis employs a longitudinal layout with the battery on the left and the motor on the right, to offer excellent stability. In addition, it features identical left and right suspension arms and uprights for ease of assembly, plus easy-to-maintain gearboxes. It is a highly adaptable chassis, as it offers 2 different wheelbases, 2 ground clearance settings and 2 tread set-ups in addition to a range of 10 possible gear ratios. It is not short on looks either, with brake disc-shaped wheel hubs and stylish front bumper supports.
Body is clear.
Required to Complete: 2-Channerl radio, steering servo, 7.2volt battery pack with compatible charger, and Tamiya PS paint, assembly, and assembly tools.
Features:
- Stickers are included to recreate the markings for the no.45 car driven by 1991 champion Frank Biela. Window masking stickers included to aid in the painting process.

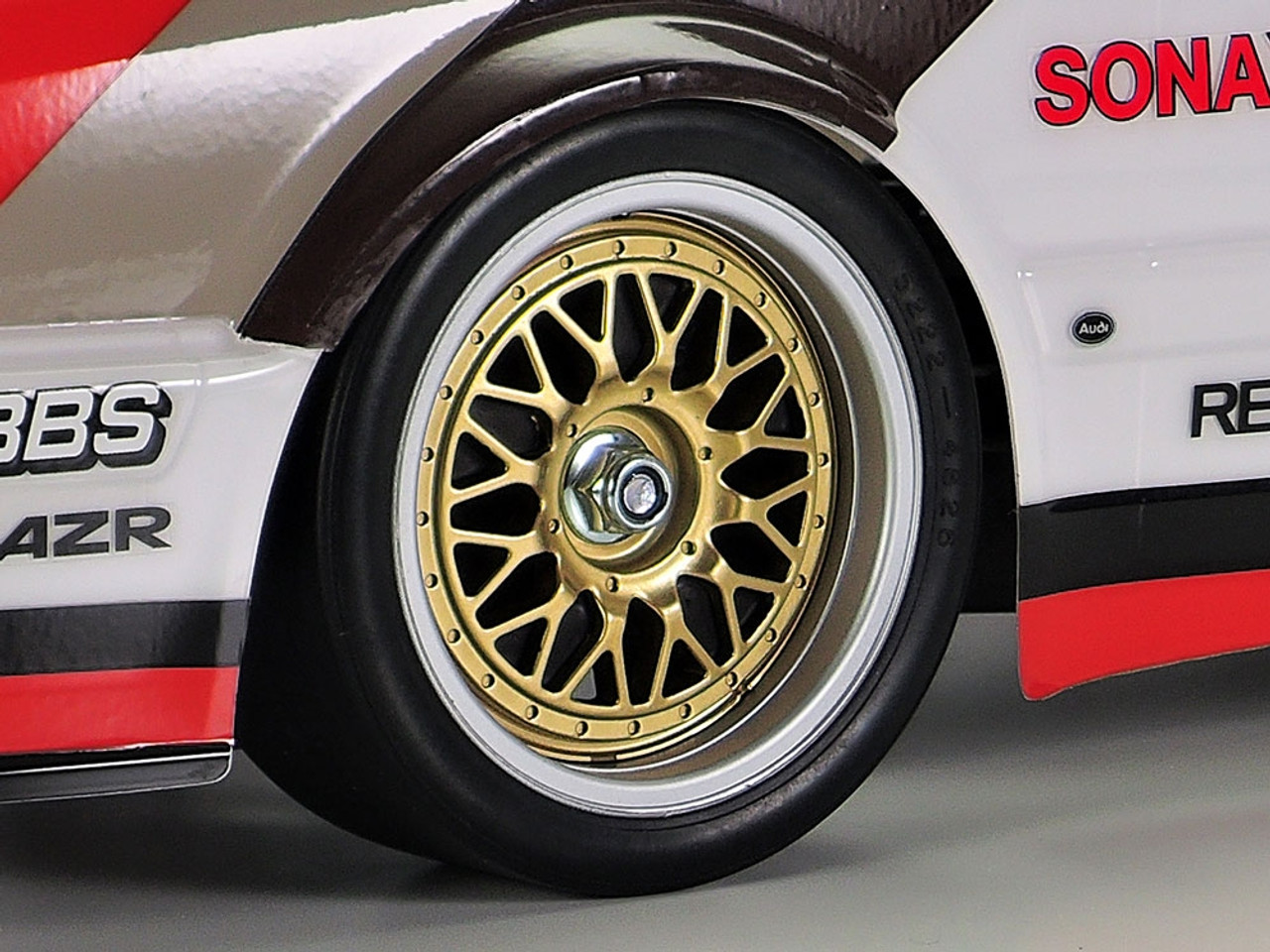

- Two-piece mesh wheels (Item 50548 design) have silver color rims and gold color spokes. They are paired with racing slick tires.
- 4-bevel differential gears and 4-wheel double wishbone suspension make for smooth driving.
- Resin ball links in the steering linkage joints make for smooth, comfortable motion.
- Wheel hubs are shaped to look like brake discs.
- Motor cover includes removable cooling duct (not attached in above image).
Specifications:
- 1/10 scale shaft-driven 4WD on-road RC model assembly kit.
- Length: 463mm, Width: 188mm, Height: 138mm, Wheelbase: 257mm
- Chassis Type: TT-02
- Chassis Material: ABS Plastic
- Adjustable Gear Ratio: Yes
- Bearings: Plastic bushing
- Body Material: Polycarbonate
- Body Stickers: Included
- Differential Type Gear
- Electronic Speed Control (esc): Includes HobbyWing THW 1060 Brushed Motor ESC (2-3S)
- Motor: 540-brushed type
- Shock Damper: Friction type
- Suspension: Fully Independent Double Wishbone
