Product Description
The origin of M-chassis series history goes back to December 1994, and this series has been popular due to cost-effective kits with a wide choice of bodies, ease of maintenance and control for any level user. Enter, the all-new MB-01!
The new MB-01 chassis continues that tradition and allows six setups by choosing from three types of wheelbases, and front- or rear- wheel drive system. Its first body recreates the Fiat Abarth 1000 TCR Berlina Corse which was a car developed with high level tune-ups based upon the compact 2-door Fiat 600.
The MB-01 Chassis
The compact, 2WD MB-01 chassis gives a choice of three types of wheelbases, and front- or rear- wheel drive system. This model employs a midship motor, rear-wheel drive setup. Without removing battery pack, motor, and R/C equipment setups from the center frame, simply change attachment directions of final gears and steering linkage to switch between front- and rear-wheel drive; low or high motor position can be chosen for rear-wheel drive cars. The 4-wheel double wishbone suspension features symmetrical structure and friction dampers. Unitized sections such as motor mount, final gears and suspension facilitate ease of assembly and effective maintenance.
Required to Complete: 2-channel radio, 7.2-7.4volt battery with compatible charger, and Tamiya PS paint to complete.
Features:
- The multi-purpose, 2WD MB-01 chassis gives choices of three types of wheelbases.
- Simply change attachment directions of final gears and steering linkage to switch between front- and rear- wheel drive; low or high motor position can be chosen for rear-wheel drive cars.
- Unitized sections such as motor mount and final gears facilitate ease of assembly and effective maintenance.
- The 4-wheel double wishbone suspension features symmetrical structure and friction dampers.
- While this is a 2WD model, multi-link suspension is compatible with tires featuring the same compound and rear tire with toe-in as 4WD models.
- Gear ratio: 5.83:1 (when using kit-standard 29T pinion gear)
- Features 55mm diameter front tires and 60mm diameter rear tires to authentically recreate the stance of the actual car.

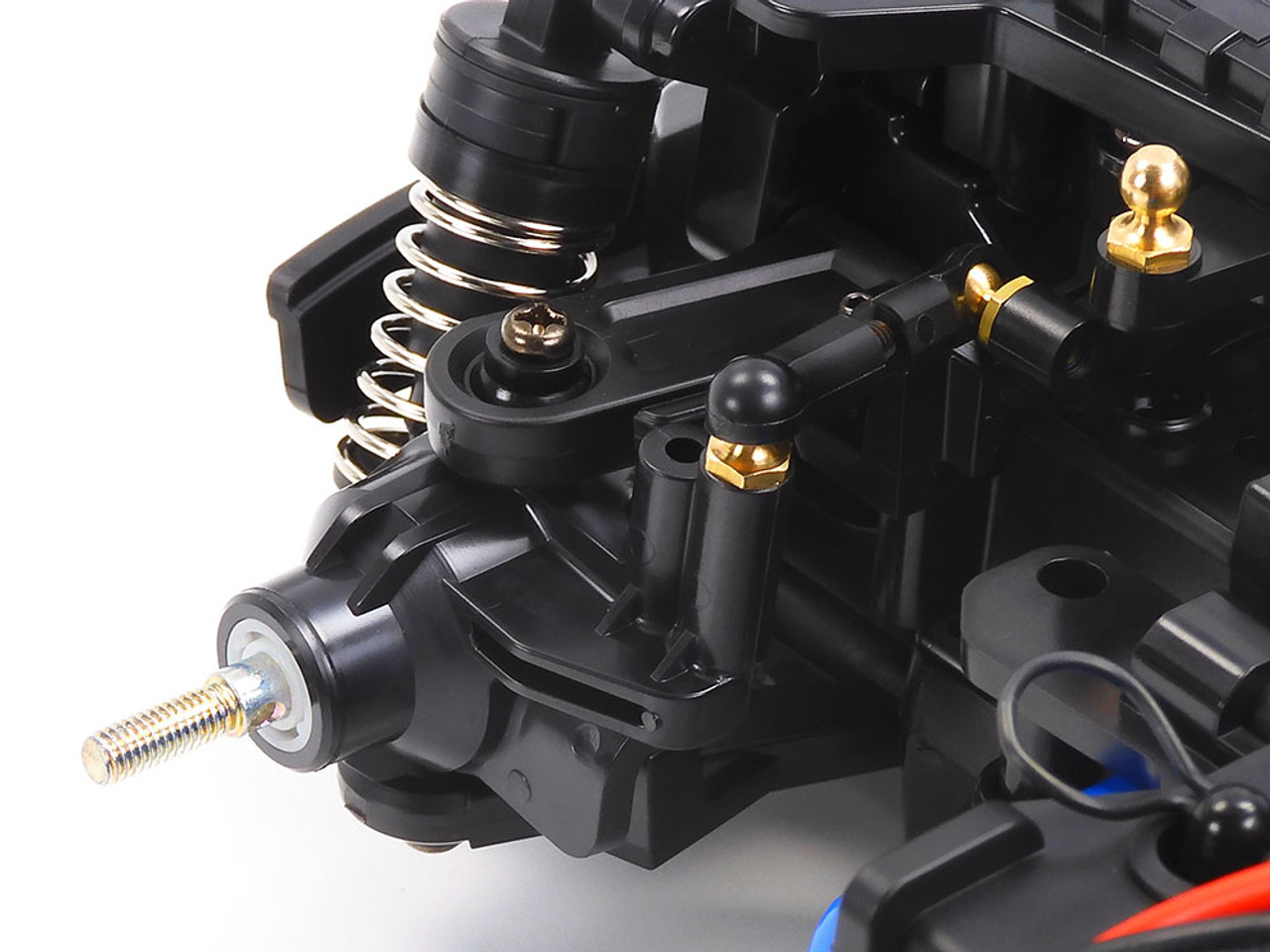

- Coil sprung dampers come as standard.

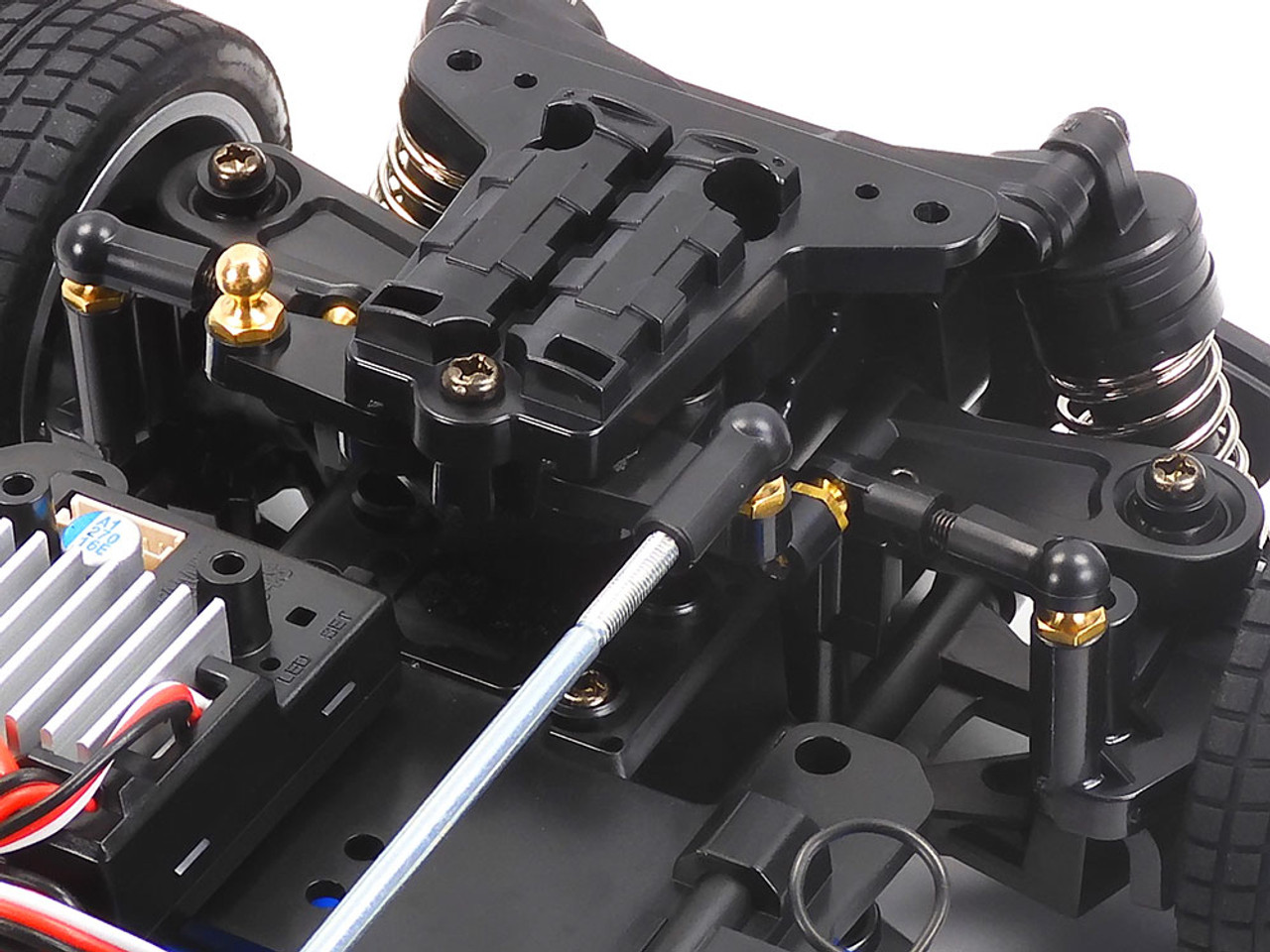

- The steering servo is installed in the right-rear of the model, and moves the steering linkage via a link rod.
- The motor mount is assembled as a unit, and secured to the chassis using two screws.

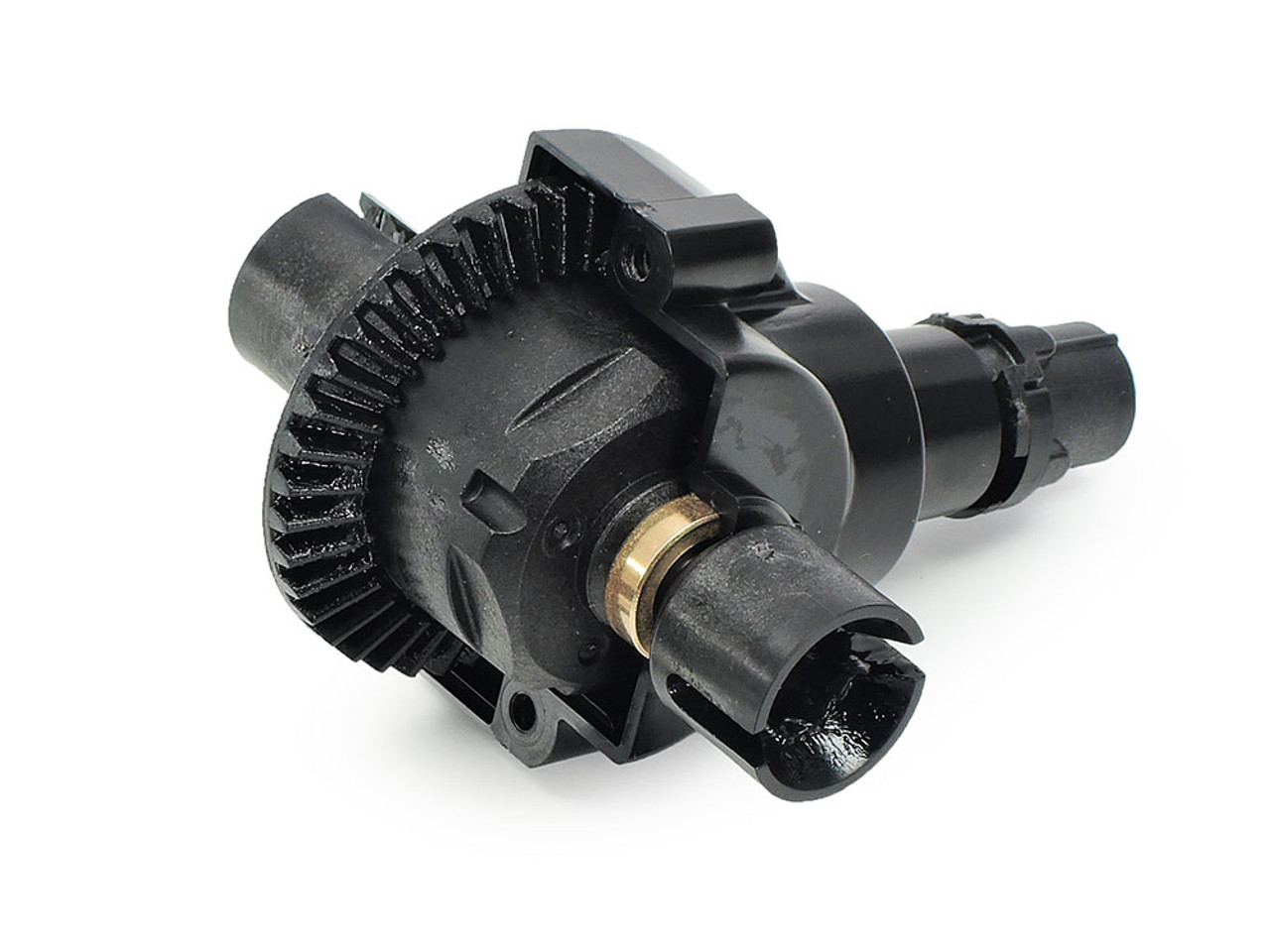

- The 4-bevel gear differential is the same as that on the TT-02.
- The flip-up battery holder gives quick access.
- Many Hop-Up Option parts for M-chassis and TT-chassis cars can be used to fine-tune setup.
- Includes 540 motor and ESC.
Specifications:
- Length: 374mm, width: 168mm, height: 140mm
- Wheelbase: 210mm (Short)
- Tread: 140mm (front & rear)
- Tire width/diameter: 25/55mm (front), 25/59mm (rear)
- Gear ratio = 5.83:1 (using kit 29T pinion)
- Adjustable Gear Ratio: Yes
- Bearings: Plastic bushing
- Body Material: Polycarbonate
- Body Stickers: Included
- Chassis Material: ABS Plastic
- Chassis Type: MB-01
- Construction Type: Assembly Kit
- Differential Type: 4-bevel differential gear
- Drive Type: RWD
- Electronic Speed Control (esc): Includes HobbyWing THW 1060 Brushed Motor ESC (2-3S)
- Motor: 540-brushed type
- Scale: 1/10
- Shock Damper: Friction type
- Suspension: Fully Independent Double Wishbone
- Terrain Use: On-Road
