Product Description

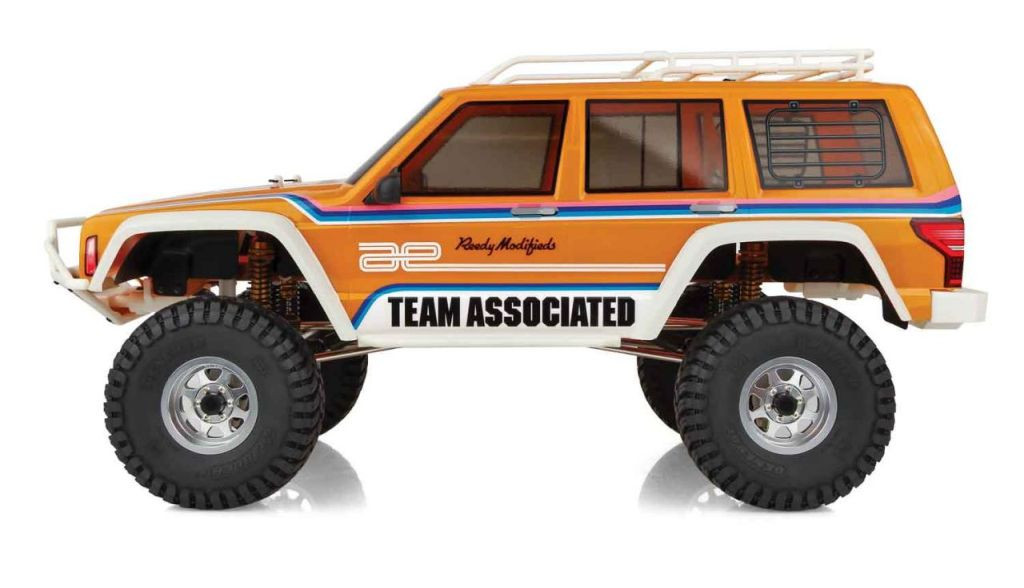

A performance rig built to endure. When hitting the trail, you want to do it with confidence and the answer is the RC10 Trail Truck Portal Kit!
At the heart of the RC10 Trail Truck Portal Kit is our revolutionary Stealth X gearbox. Although the exterior appears to have a conventional 3-gear transmission look, the inside is far from conventional. The Stealth X features the ability to adjust the rear drive ratio independently of the front drive across three levels: stock overdrives the front end 5.7%, option 1 provides a one-to-one drive ratio front-to-rear (available separately), and option 2 overdrives the front end 11.83%. Feeding the power to the tires are 3-piece telescopic driveshafts with an extruded aluminum center section, universal front drive axles, and hardened steel ring and pinion gears. With the Enduro drivetrain, delivering useful power will not be an issue.
The RC10 Trail Truck Portal Kit features new high-clearance portal axles. These new portal axles include all-metal gears, ball bearings, and a new larger pocket for a heavier-duty inner input bearing. With almost an inch more clearance than our standard straight axles, these axles are a perfect fit for the Enduro line-up.
With all this packed in one box, we know the RC10 Trail Truck Portal Rock Crawler Kit is ready for the trail - Are you?
Features:
- NEW high-clearance portal axles
- CMS (Chassis Mounted Servo)
- Adjustable front track bar
- Universal front drive axles
- Gold colored stamped steel frame rails
- 12mm wheel hexes
- Adjustable front bumper mount
- Two battery boxes
- Gold anodized aluminum motor plate
- Adjustable body posts
- Optimized ball cups for more fluid axle articulation
- Adjustable rear shock tower mount positions
- Telescopic driveshafts front and rear
- Extruded aluminum driveshaft splines
- Splined front axle with adjustable caster
- Metal gears throughout axles
- Increased inner axle input bearing
- Machined steel top shaft
- Steel servo horn
- Heavy-duty 5mm diameter steel links
- Metal ball bearings included
- RC10 Trail Truck body thermoformed in high-strength polycarbonate
- Polycarbonate inner fenders
- Single-piece body with roof rack
- Clear windows
- Adjustable injection-molded front and rear bumpers
- Realistic styling
- Licensed 1.9"x4.65" General Grabber X3 tires
- Licensed 1.9" Method 701 Trail Series beadlock wheels
Specifications:
- Power Source: Electric
- Terrain: Off-Road
- Body Style: Truck
- Scale Size: 1:10 Scale
- Assembly Level: Kit (This vehicle comes as a kit and must be fully assembled by the user. )
- Length: 462mm (18.19in)
- Width: 236mm (9.29in)
- Wheelbase: 325mm (12.8in)
- Weight: varies
- Internal Gear Ratio: varies
- Drive: 4WD
- Product Status: Active
