Product Description

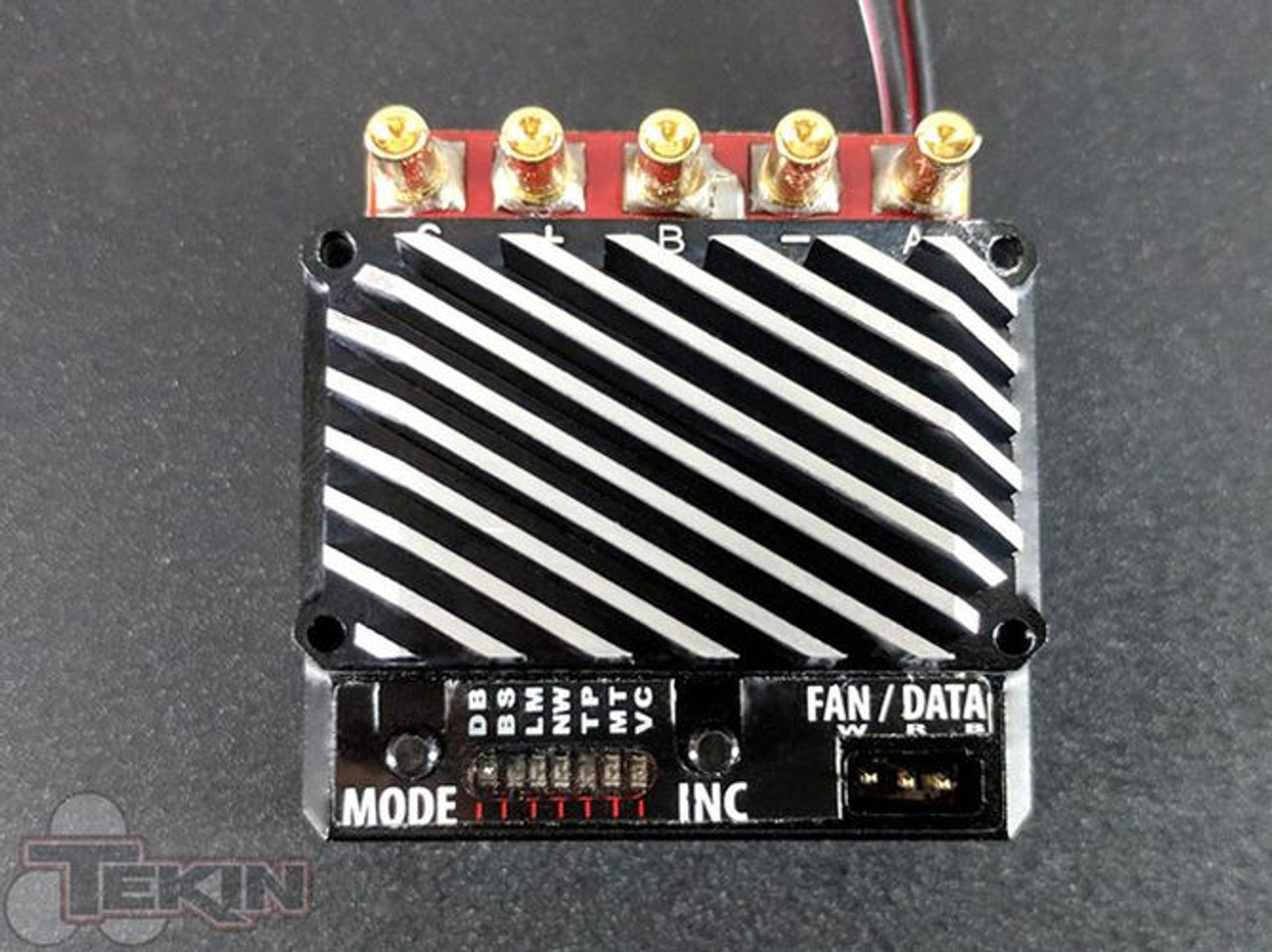

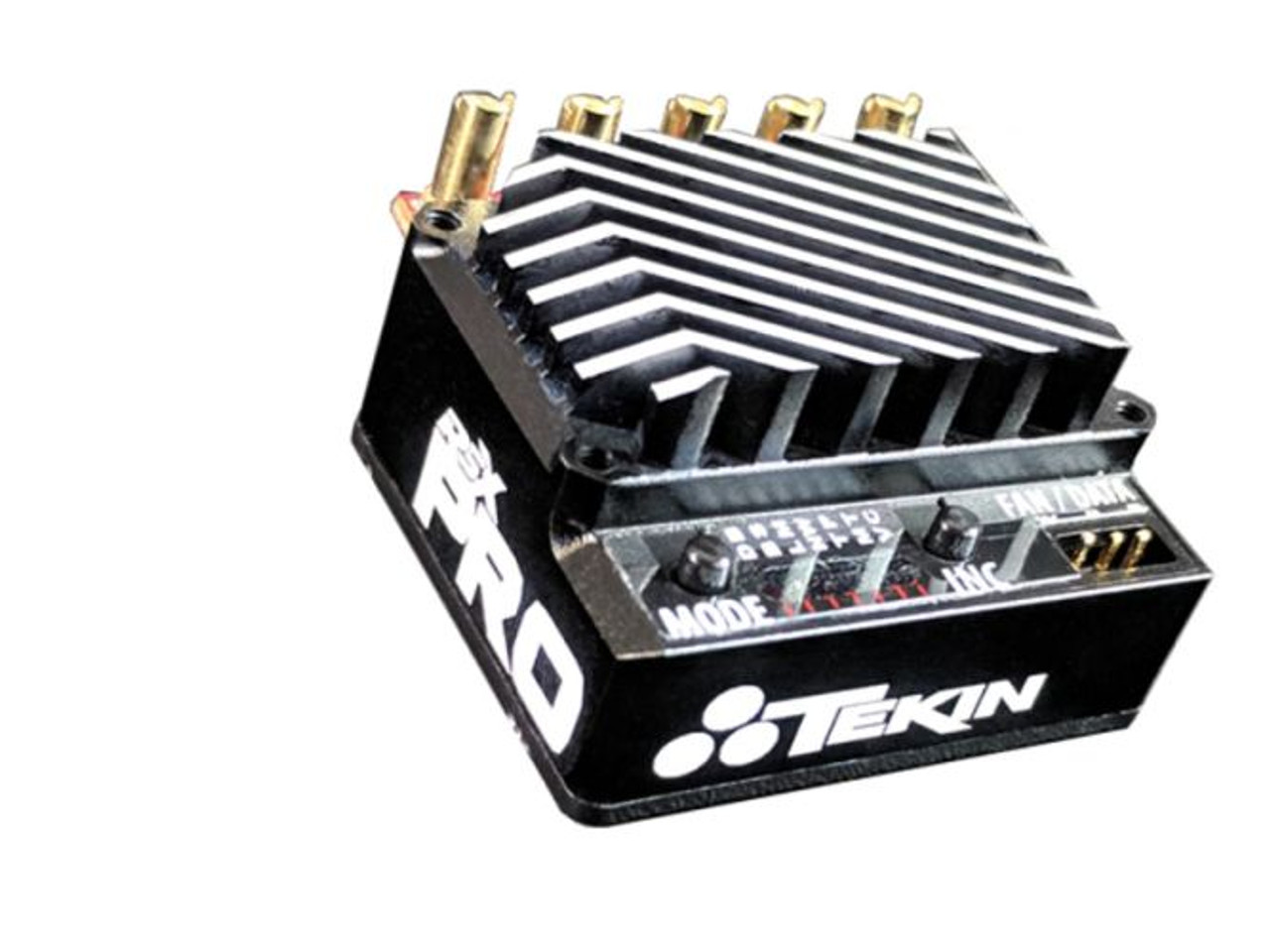

The RSX PRO is Tekin's premiere modified racing Electronic Speed Control. Using only the best available components and materials, this ESC is performance defined. Bred for 1:10th scale modified competition, the RSX PRO gives you maximum power with precise control and reliability. With a highly efficient aluminum heat sink housing and an entire array of adjustable features, you have the ability to fine-tune the RSX PRO's massive power for the win. Unlock the full potential of your RSX PRO with the Tekin HotWire.

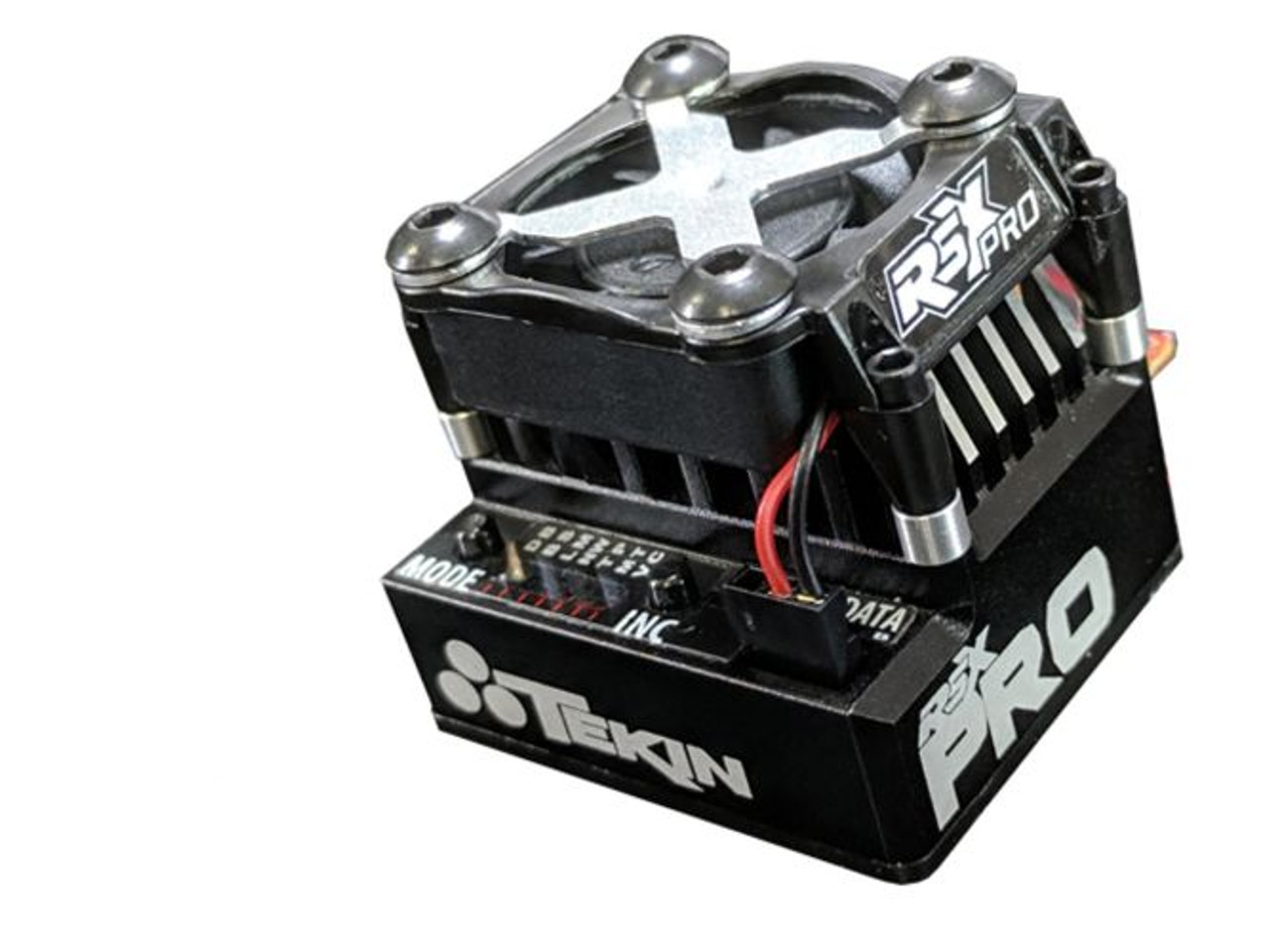

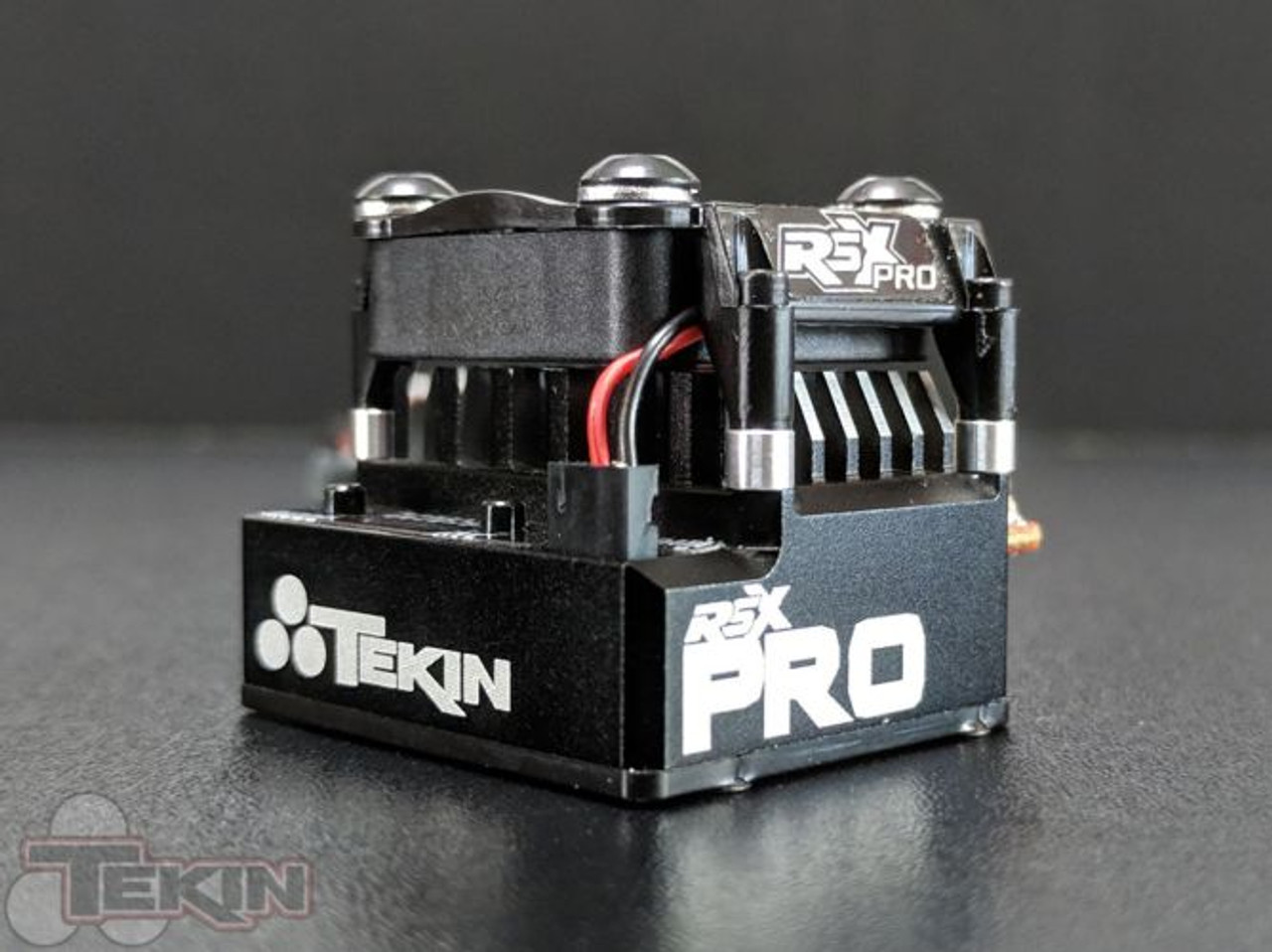

Included with the RSX PRO is a detachable fan shroud system for maximum cooling in extreme racing conditions. Data Logging, a High Voltage HD Internal BEC and optional 3rd Channel Drag Brake Adjustment come standard as well as access to Team Driver setups. Take your racing program to the next level with the Tekin RSX PRO.
Features:
- Billet 6061-T6 Aluminum Heat Sink Housing and Optional High RPM Cooling Fan
- FET Package
- HD Easy Solder Posts
- QuickTune One Touch Programming
- Adjustable Torque Control *
- Adjustable Throttle and Brake Frequencies *
- High Voltage Programmable BEC *
- HotWire Programming Port *
- Data Logging Capability *
- Sensor Checker
- On-Board Temperature Indicator
- ESC Self Diagnostics with Error Codes
- Fully Proportional Forward/Brake/Reverse
- Brushless and Brushed Motor Drive
- Sensored or Sensorless Operation
- LiPo Safe with Custom Voltage Cutoffs
- Sensor Plug for Precise Commutation
- HDAC: High Density Copper PCB's
- Ultra-smooth and Precise Throttle and Braking Control
Specifications:
- Controls: Forward/Brake/Reverse
- Input Voltage: 2S-3S LiPo / 4-9S NiMH
- Motor Limit Brushless Mode 2S: 2.5 Turn 2-pole 36mm Can
- Motor Limit Brushless Mode 3S: 8.5 Turn 2-pole 36mm Can / 3500kV max
- Motor Limit Brushed 2S: 6 Turn, 36mm Can
- Motor Limit Brushed 3S: 12 Turn, 36mm Can
- Max Current: 210amps per phase*
- BEC: 6.0v / 7.4v @ 5.5amps
- Dimensions: 1.21 x 1.43 x .82in / 31.2 x 37.2 x 21mm
- Weight: 1.4oz / 40g
ON BOARD QuickTune™ PROGRAMMABLE FEATURES
- DB - Drag Brake (13 steps)
- BS - Brake Strength (13 steps)
- LM - Torque Limiter (7 steps)
- NW - Neutral Width (13 steps)
- TP - Timing Profiles 5 Preset - 2 Custom*
- MT - Motor Type
- Brushless Modes - FWD Only / FWD-REV / FWD-REV Delay / FWD-REV Delay REV Motor Direction
- Brushed Modes - FWD Only / FWD-REV / FWD-REV Delay
- VC - Voltage Cutoff : 2S, 3S, Custom*
