Product Description

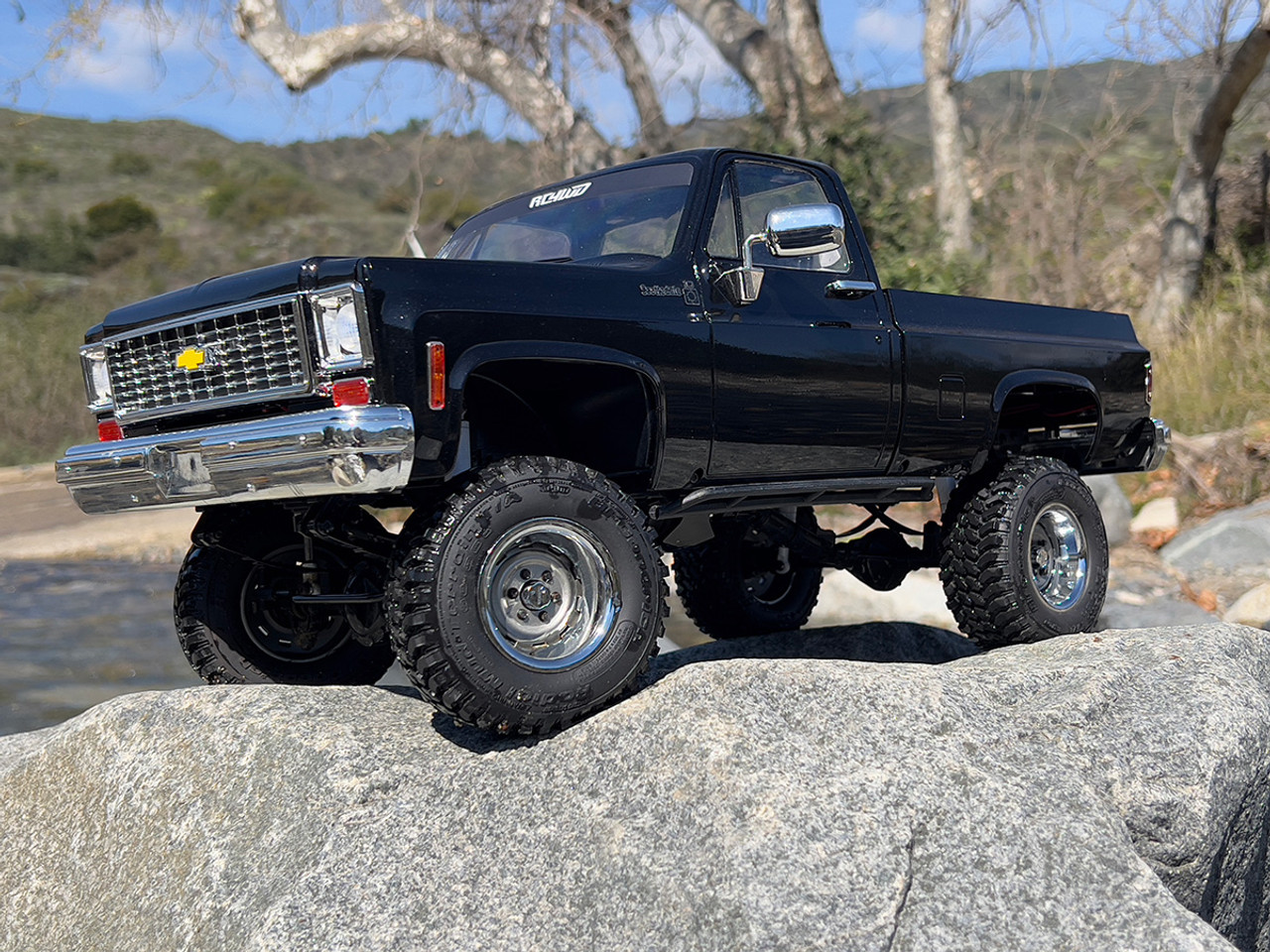

Take a trip down memory lane with the RC4WD Trail Finder 2 "LWB" RTR w/Chevrolet K10 Scottsdale Hard Body Set! This stunning 1/10 scale replica captures the iconic details of the Scottsdale trim level found on K10 trucks from the 70s! Featuring a molded drop bed, functional tailgate, molded interior, and an opening hood. This model comes packed with details!
The Trail Finder 2 "LWB" chassis has an industry 12.3" wheelbase and comes loaded with an R3 Single Speed Transmission, 540 45T Crawler Brushed Motor, RC4WD Ultimate Scale Shocks, and Outcry III Waterproof ESC, ensuring performance and handling!
Own the ultimate tribute to the iconic K10 today!
Features:

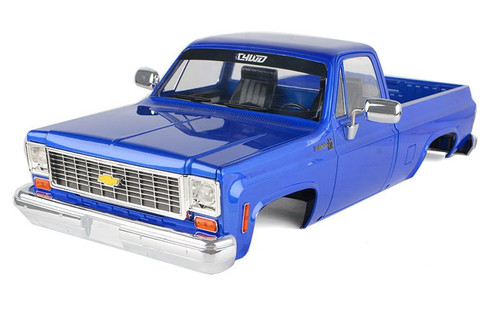

- 1/10 Chevrolet K10 Scottsdale Hard Body Complete Set
- Chevrolet Blazer chrome front grille w/optional inserts
- Pre-installed LED light set
- Rally 1.9" beadlock wheels (Silver)
- RC4WD BFGoodrich Mud Terrain KM 1.9" scale tires
- K44 Ultimate scale cast axles
- Super scale 70mm white shocks w/internal springs
- Soft steel leaf springs
- 540 Crawler brush motor 45T
- R3 single speed transmission
- Center mounted hammer transfer case
- Twister high torque metal gear digital servo
- Outcry III Waterproof ESC
- 6-Cell 3000mAh NiMH Battery w/XT60 Plug
- RC4WD Marlin Crawler side plastic sliders
- Front inner fender set
- XR3 3-Channel 1.4GHz transmitter/receiver radio
- Universal NiMH peak battery charger
- Updated Suspension Leafs
- Detailed Engine Bay (includes Dress Up Kit)
- Deep Black Finish
Specifications:
- Hammer Transfer Case: Ratio: 1.47:1, Gears: Wide .8 Mod Hardened Steel Gears, Features: 8 Bearings, Cast Casing, Hardened Gears
- R3 Scale Single Speed Transmission: Ratios: Pinion/Spur 14/64 = 1:4.57, Internal Ratio: 1.78:1, Gears: Wide Steel .8 Mod, Delrin Spur, Slipper Clutch
- K44 Ultimate Scale Cast Axles: Ratio: 2.67:1, Hex To Hex Width: 177mm (6.96")
- Shock Absorbers: Super Scale 70mm White Shocks with Internal Springs
- Wheels: Type: Rally 1.9" Beadlock Wheels (Silver) Hub: 12mm Hex, Width: 1.29in / 33.0mm, OD: 2.14in / 54.0mm
- Tires: Type: RC4WD BFGoodrich Mud Terrain KM 1.9" Scale Tires, Outer Diameter: 100.0mm (3.9"), Width: 42.0mm (1.65"), Inner Diameter: 48mm (1.89")
- TF2 Truck Dimensions: Wheelbase: 314mm (12.4"), Width: 220mm (8.7"), Height: 238mm (9.4"), Ground Clearance: 61.6mm (2.4"), Final Drive Ratio: 31.9:1
