Product Description

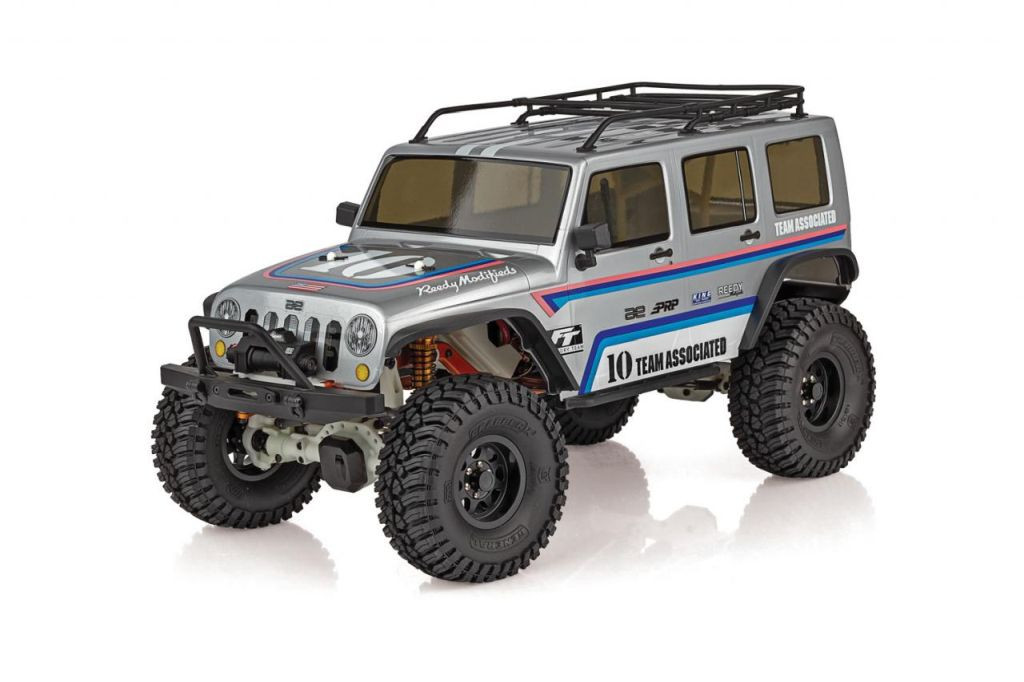

A performance rig built to endure. When hitting the trail, you want to do it with confidence, and the answer is the RC10 Trail Truck Cattleman Kit from Team Associated Element RC.
At the heart of the Trail Truck Cattleman Kit is our revolutionary Stealth X gearbox. Although the exterior appears to have a conventional 3-gear transmission look, the inside is far from conventional. The Stealth X features the ability to adjust the rear drive ratio independently of the front drive across three levels: stock overdrives the front end 5.7%, option 1 provides a one-to-one drive ratio front-to-rear (available separately), and option 2 overdrives the front end 11.83%. Feeding the power to the tires are 3-piece telescopic driveshafts with an extruded aluminum center section, universal front drive axles, and hardened steel ring and pinion gears. With the Enduro drivetrain, delivering useful power will not be an issue.
Features:
- CMS [Chassis Mounted Servo]
- Adjustable front track bar
- Universal front drive axles
- Gold colored stamped steel frame rails
- Enclosed receiver box
- 12mm wheel hexes
- Adjustable front and rear bumper mounts
- Adjustable width rock sliders
- Two battery boxes
- Gold anodized aluminum motor plate
- Adjustable body posts
- Optimized ball cups for more fluid axle articulation
- Adjustable rear shock tower mount positions
- Telescopic driveshafts front and rear
- Extruded aluminum driveshaft splines
- One-piece rear axle design
- Splined front axle with adjustable caster
- Metal gears throughout axles
- Machined steel top shaft
- Heavy duty 5mm diameter steel links
- Metal ball bearings included
- Factory Team #42390 Steel Diff Covers 43g (Front and Rear)
- RC10 single-piece Cattleman clear trail truck body thermoformed in high-strength polycarbonate
- Injection-molded mirrors and roof rack
- RC10 decal sheet
- Adjustable injection-molded front and rear bumpers
- Realistic styling
- Licensed 1.9"x4.65" General Grabber X3 tires
- Licensed 1.9" Method 701 Trail Series beadlock wheels
Specifications:
- Power Source: Electric
- Terrain: Off-Road
- Body Style: Truck
- Scale Size: 1:10 Scale
- Assembly Level: Kit (This vehicle comes as a kit and must be fully assembled by the user. See "Required to Complete" for extra items needed.)
- Length: 462mm (18.19in)
- Width: 260mm (10.24in)
- Wheelbase: 313mm (12.32in)
- Weight: varies
- Internal Gear Ratio: varies
- Drive: 4WD
