Product Description

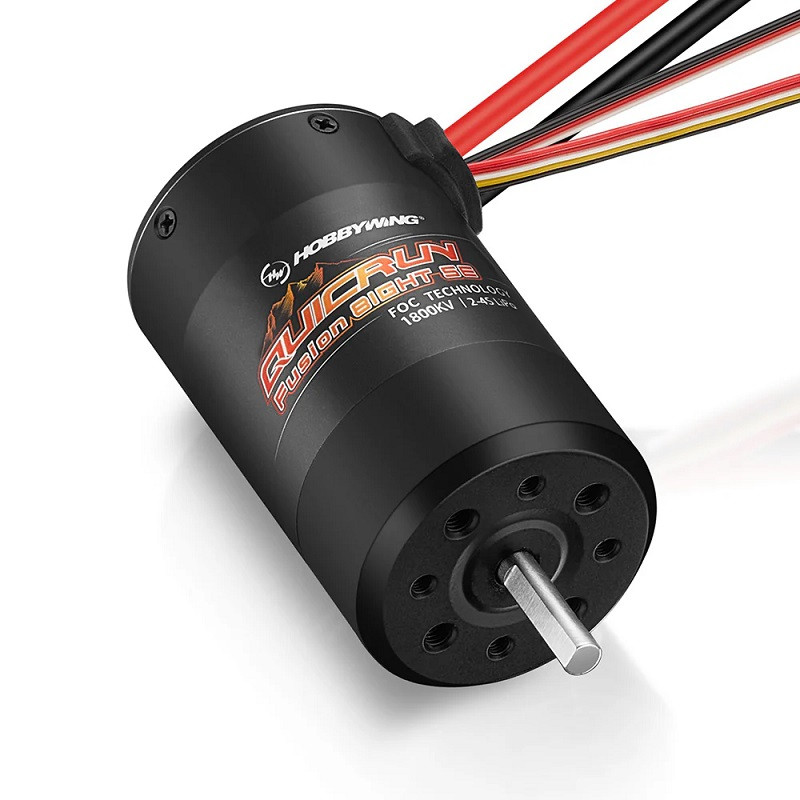

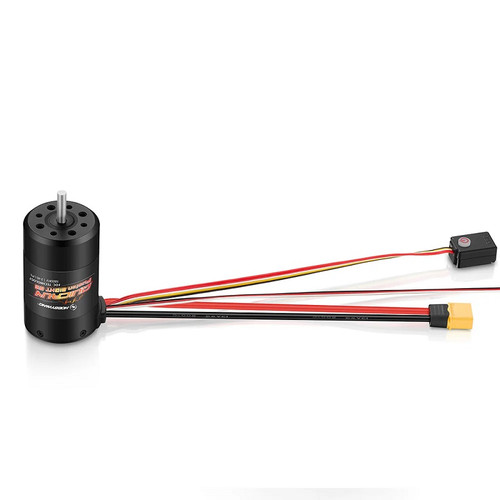

1/8 Integrated Power System
A high performance FOC integrated System for 1/8th scale models, for Super Linearity, High Torque & Extreme Mute.
Includes:
- 1x FOC motor w/ built-in ESC
- Factory-installed XT60 plug
- 1x Decal and Manual
- 1x Heatshrink kit, double-sided tape, and zip ties.
Features:
- The integrated design of the ESC and the motor, makes the layout and wiring of car more simple, and convenient.
- FOC(Field Oriented Control) driving mode to the power system of rock crawler. The low speed torque is very strong. This improves over standard brushless setups and is even preferred over the brushed setups for overall feel.
- The system has high efficiency, less heat, and effectively extends the run time; and the motor runs more quietly and soft.
- Excellent waterproof and dustproof performance, capable of running in all conditions.
- Intelligent torque output and speed closed-loop control, making the control handy.
- Active drag brake force adjustment, providing super holding power on inclines.
- With strong built-in switch mode BEC, and supports 6V/7.4V adjustable, capable of driving high torque and high voltage servos.
- Multiple protection functions: battery low voltage protection, overheat protection, throttle lost protection, lock-up protection.
- It supports LED and LCD Program Box Pro/G2 to set ESC parameters, making setting parameters more convenient.
Specifications:
- Continuous/peak current: 60A/200A
- Main applications: 1/8 Crawler
- LiPo Cells: 2-4S LiPo, 6-12 Cells NiMH
- BEC Output: 6V/7.4V adjustable, continuous current 4A (Switch mode)
- Size/Weight: 41mm (diameter) x 69mm (length)/326.5g (including wires & connectors)
- Programming Port: Independent programming port (switch position)
- Motor KV: 1800KV
- Diameter/Length of motor: 41mm/69mm
- Shaft diameter/exposed shaft length: 5mm/18.5mm
- Motor Poles: 4
