Product Description

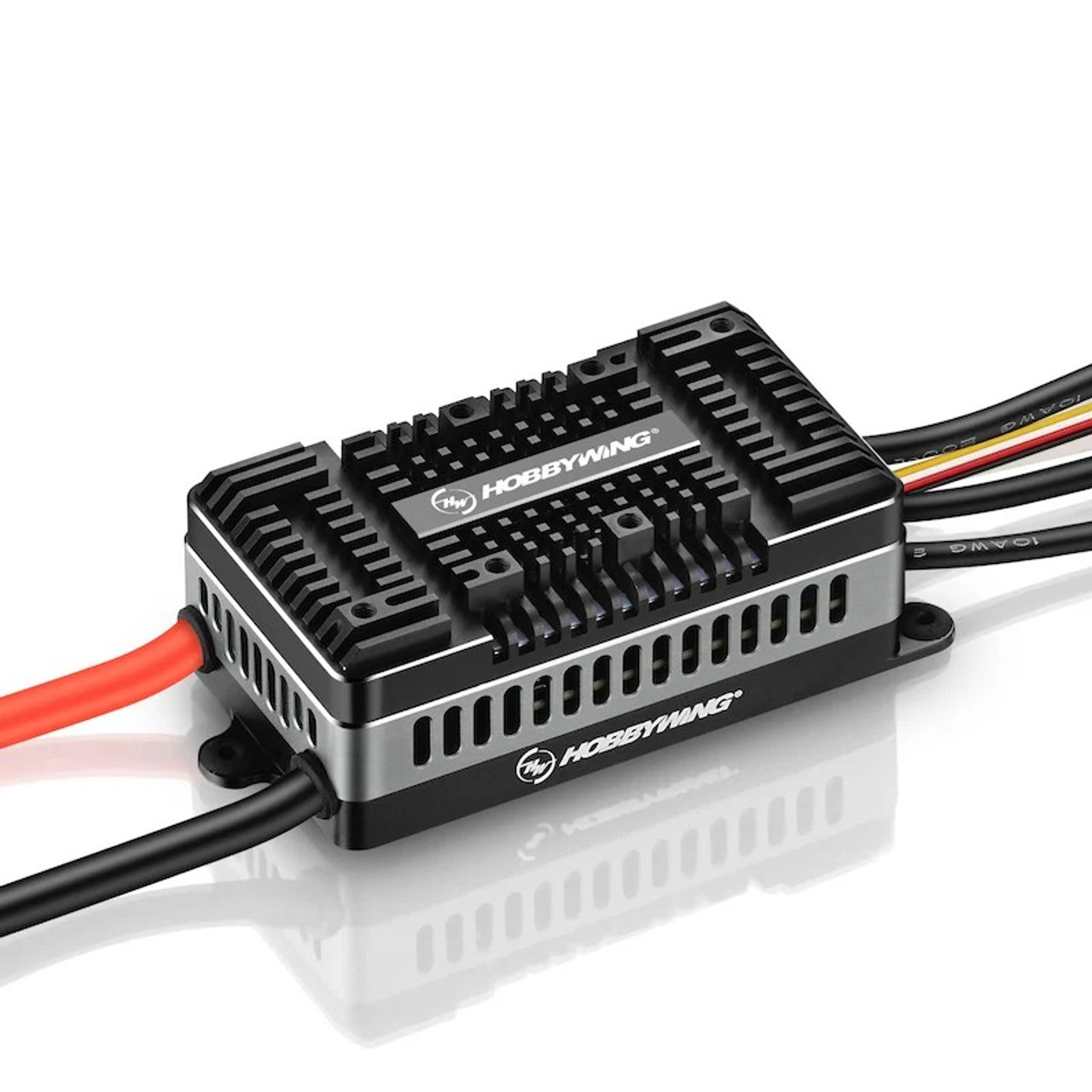

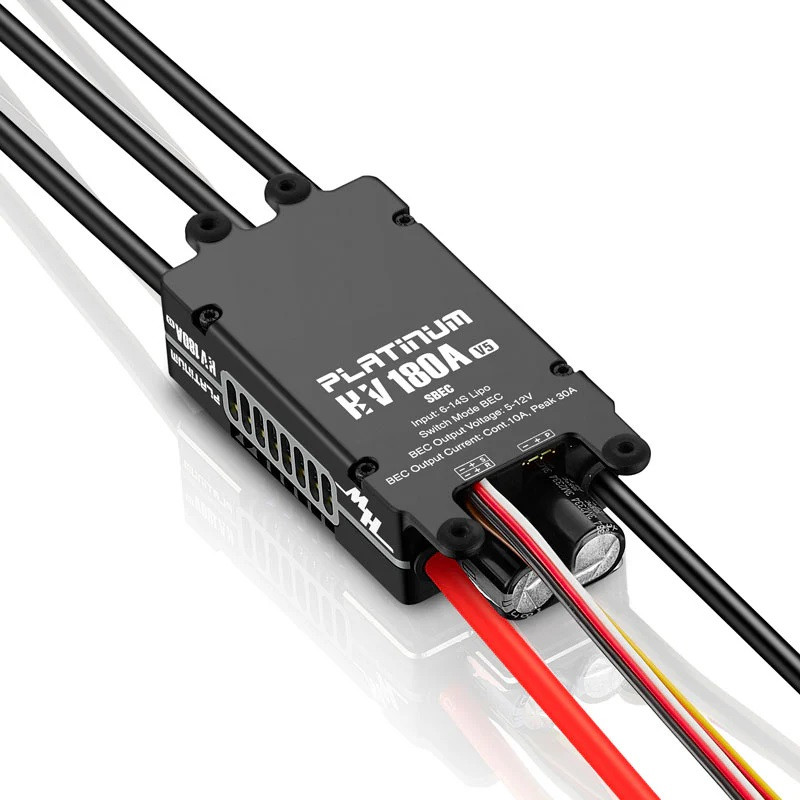

Platinum PRO V5 ESC
The design allows for the ESC to be more compact and weigh less. The ESC can meet the demands of more crafts.
The ESC is redesigned with a double-sided heat sink with a side vent. The air is able to quickly pass through the inside of the ESC and cool the ESC more efficiently. This innovative air duct design is able to generate strong airflow on the entire ESC from the cooling fan. Significantly improving the cool capacity.
Features:
- Built-in 12V Switch BEC for greater output capability
- Instantaneous high current with a built-in 12V programmable BEC
- The circuit design raises the max output from 8.4V to 12V. (5-12V adjustable)
- The high-power BEC has added an anti-reverse circuit to use parallel with external 2S batteries at the same time to provide double protection
- Constant speed performance upgrade, ultimate flight experience
- The 32-bit processor combined with the RPM accuracy algorithm makes the ESC more powerful and more consistent, maximizing the RPM accuracy to enhance overall performance.
- The adjustable constant speed sensitivity allows every pilot to easily find a setting that suits them personally.
- VBar Telemetry Ready - The Platnium V5 is equipped with Mikado VBar Control and is able to monitor data of their electronics by its Fully Telemetry functions.
- Multiple protections, Double the security: Enhance ESC Durability with Integrated Safety Mechanisms: Redundancy / Self-diagnostic capabilities / Enhanced algorithms
Specifications:
- Application: 550-700 class electric helicopter (main rotor length 550-700mm),or fixed-wing
- Input (V) Lipo: 6-14S
- Cont./Peak Current (10s): 180A/260A
- BEC (Switch mode): 5-12V adjustable (step: 0.1V) 10A/30A Cont./Peak
- Separate Programming Port: Tunalyzer / LCD Program Box / OTA Programmer
- Input wires: Red-10AWG-150mm / Black-10AWG-150mm
- Output wires: Black-10AWG-100mm
- Output connector: Gold connector
- Mounting-holes: M3, 16.5* 90x34mm
- Size: 100.6 x 45.5 x 26.1 mm
- Weight: 250.6g (Without Fan)
