Product Description

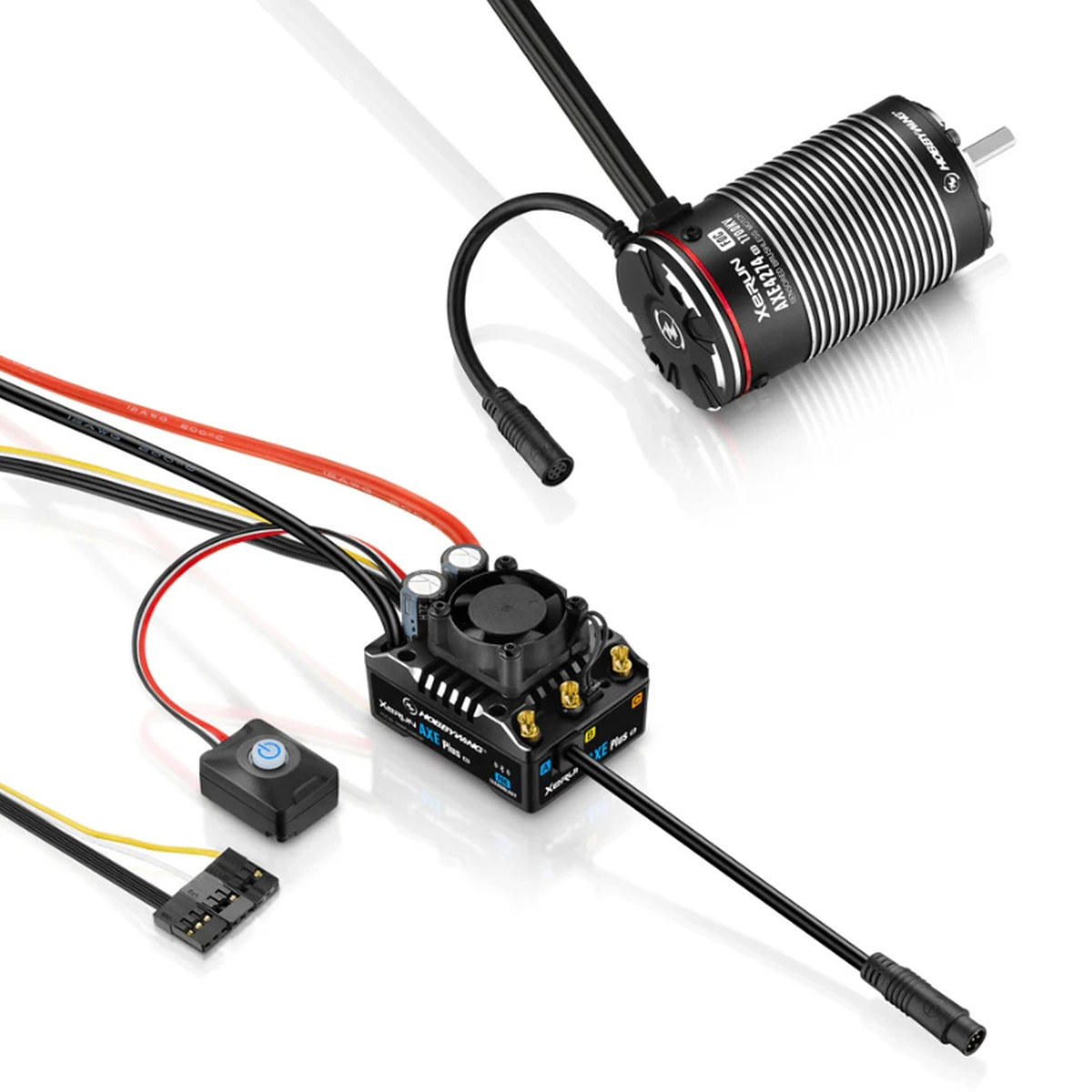

Includes:
- 1x XeRun AXE R3 ESC
- 1x XeRun AXE 4200 series motor
XeRun Axe R3 ESC (6S high-power crawler ESC)
Features:
- The ESC supports up to 6S LiPo battery and has a maximum output continuous current of up to 135A.
- The AXE R3 can be used on 1/6, 1/7, 1/8, and 1/10 scale crawler using a new compact design Also compatible with all AXE R2 3500/3600 series motors.
- Dual external control channels, real-time adjustment of parameters.
- Smart Fan Start and Stop Function: The fan starts to operate automatically ONLY when the ESC temperature reaches the preset value. The smart start and stop function of the fan helps to save power, reduce noise, and also ensures that the ESC works in a good temperature range.
- High protection level: The AXE R3 brushless system is now IP67 protected. It has excellent waterproofing and dust-proofing performance to cope with various climatic conditions.
- Super Internal BEC: It has a built-in powerful BEC with a maximum output current of 15A. The voltage is switchable between 6V/7.4V/8.4V and is suitable for various standard/high-voltage servos and peripheral electrical equipment on the market (such as light sets, winches, etc).
- Built-in Bluetooth for Connecting the Mobile APP Directly: The ESC has a built-in Bluetooth module. Parameter settings, data reading, firmware upgrade and other operations can be achieved by connecting the device to the mobile APP.
- Obtain AXE Running Status with Real-time Data Function with ease: Connect the ESC to the HW Link mobile app and turn on the real-time data function. You are able to view throttle, voltage, current, temperature, speed and other data in real time, and obtain the ESC and motor operating status with ease.
- Built-in data logging function, ease of obtaining power operating status: The ESC has a built-in data recording module. Store up to 10 minutes of your most recent run. Using the HW Link V2 saved to the ESC. In addition, the module allows you to view Time Data from the ESC for bench top testing and viewing of data outputs.
ESC Specifications:
- Cont./Peak Current: 135A/600A
- Motor Type: Only the XeRun AXE R3/R2 Series
- Applications: 1/6, 1/8, & 1/10 Rock Crawler
- LiPo Cells: 2-6S LiPo
- BEC Output: 6V/7.4V adjustable, Continuous Current of 6A
- Size: 49.5(L)x37.9(W)x32.8(H)mm(w/Fan)
- Weight: 126.5g(Included input wires&connector)
- ESC Programming: iOS or Android smart phone(installed with the HW LINK app)
XeRun AXE 4274 FOC Motor
Features:
- Waterproof- IP67: The IP67 protected AXE 4274 FOC motor features the proven Hobbywing waterproof sensor harness design to handle diverse climatic conditions.
- Precision Magnetic Sensor: The motor has a built-in magnetic encoding sensor. The accuracy 60 times better compared to the traditional sensor commonly used in brushless motors. The three-phase signal has excellent consistency and it provides accurate signals from the rotor position.
- Supports optional motor adapter, strong compatibility: The XeRun AXE R3 motor is built-in with 4 sets of 25.4mm mounting holes and 4 for M3/M4 respectively. If the frame mounting holes are 30mm, and optional motor mounting conversion plate is available for purchase.
Motor Specifications:
- KV(No-load): 2000KV
- Recommended LiPos: 3-6S
- No-load Current: 4.5A
- Motor Diameter Length: 42/74mm 1.65/2.91in
- Shaft Diameter Length: 5/18.5mm 0.197/0.73in
- Poles: 4
- Weight: 415g
- Applications: 1/6&1/8 Crawler
