Product Description
RC4WD Trail Finder 2 "LWB" 1/10 Scale Builders Kit
The Trail Finder 2 LWB has both style and aggressive performance.You can find a balance of scale details and performance into every build.
Performance is smooth with its R3 Scale Single Speed transmission, 4WD drivetrain, Bulletproof Transfer Case, and quality metal components. The front axles have been upgraded with XVDs, providing sturdier construction and a greater steering angle than stock counterparts. The Trail Finder 2 LWB is a product of innovative engineering that impresses in appearance and performance.
The Trail Finder 2 LWB is fully compatible with an array of options and performance enhancements crafted to elevate the user experience and enhance the authenticity of a 1/10 off-road truck!
This is a kit that requires building time (appro. 2-3 hours), electronics, tires and wheels.
Includes:

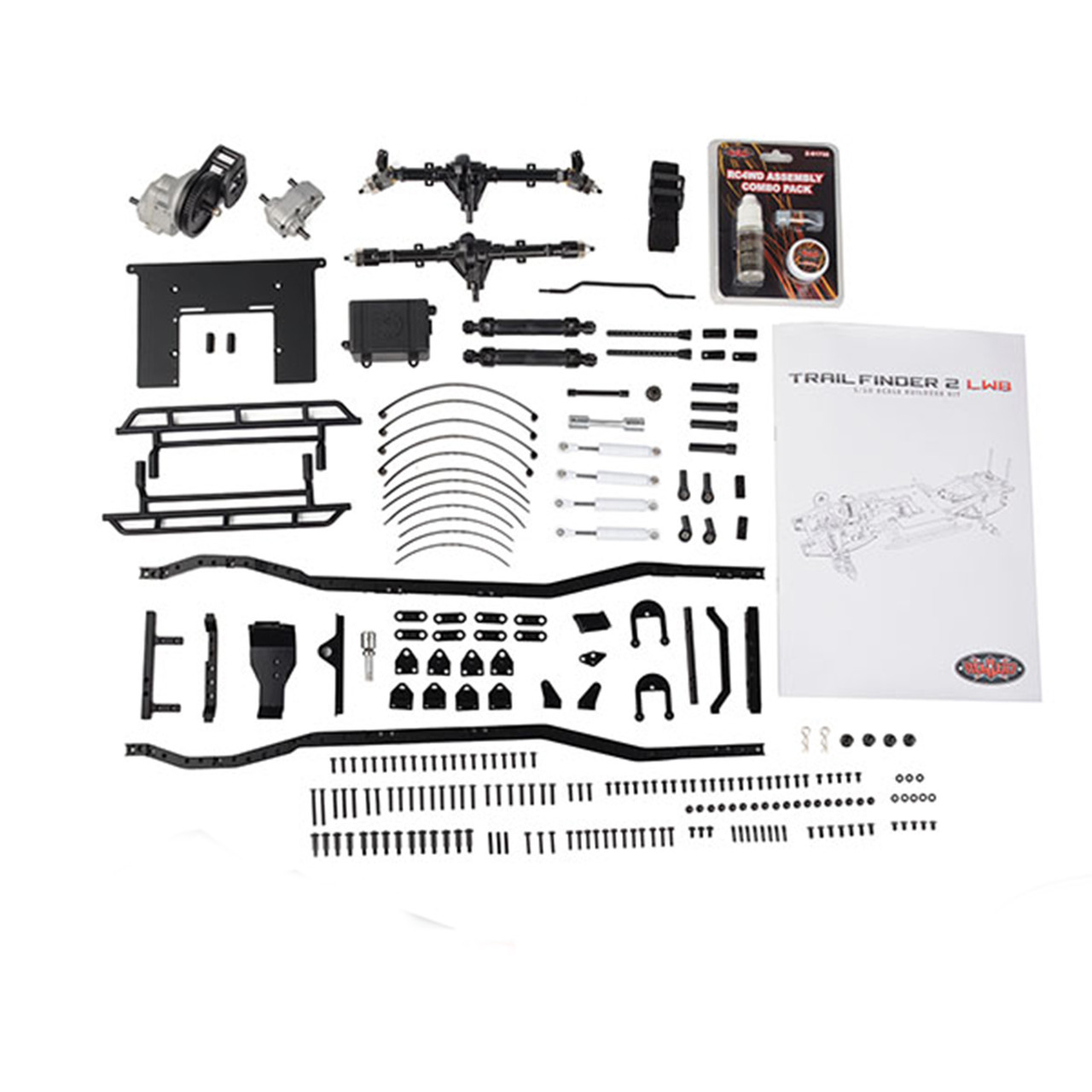

- 1x RC4WD Trail Finder 2 "LWB" 1/10 Scale Builders Kit
Required to Complete (Truck Kit):
- Hex Drivers (1.5mm, 2mm, 2.5mm)
- Long Nose Pliers
- Associated Thread Locking Adhesive
- Cross Wrench or Nut Driver (4mm, 5.5mm, 7mm)
Required to Complete (Electronics):
- Motor (35t, 45t, or 55t)
- Radio and Receiver (3 Channels or more) (3 Channel Z-R0009, or 4 Channel Z-R0006)
- Twister High Torque Metal Gear Digital Servo (Z-E0035)
- Battery (Consult your "ESC" manual) Z-E0090 or Lipo battery
- Charger (Consult your battery guide) Chargers
Features:

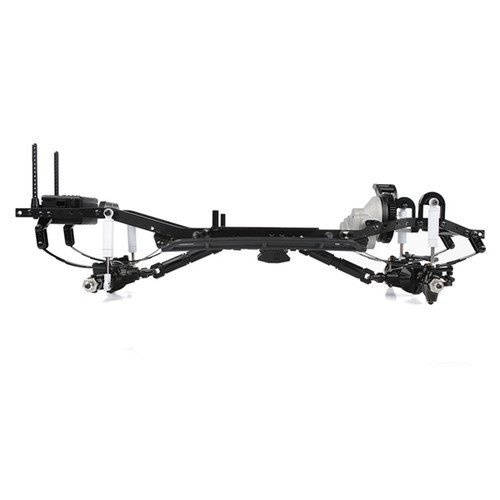

- Realistic Billet Aluminum Ladder Frame Chassis
- R3 Scale Single Speed Transmission
- Center Mounted Realistic 4x4 Transfer Case
- K44 Ultimate Scale Cast Front Axle with Upgraded XVD's
- K44 Ultimate Scale Cast Rear Axle
- Super Scale 70mm White Shocks W/ Internal Springs
- RC4WD Marlin Crawler Side Plastic Sliders
- Soft Steel Leaf Springs
Specifications:
- Hammer Transfer Case: Ratio: 1.47:1; Gears: Wide .8 Mod Steel Gears; Features: 8 Bearings, Cast Casing, Hardened Gears
- R3 Scale Single Speed Transmission: Ratios: Pinion/Spur 14/64 = 1:4.57; Internal Ratio: 1.78:1; Gears: Wide Steel .8 Mod, Delrin Spur, Slipper Clutch
- K44 Ultimate Scale Cast Axles: Ratio: 2.67:1; Hex to Hex Width: 177mm (6.96")
- Trail Finder 2 "LWB" Chassis: Features: Billet Aluminum Construction, Adjustable Shock Hoops
- Drive Shafts: High Quality Plastic Material, Durable Steel Yokes
- Trail Finder 2 "LWB" Truck Dimensions: Wheelbase: 314mm (12.4"); Width: 193mm (7.6"); Height: 118mm (4.65"); Final Drive Ratios: 31.9:1

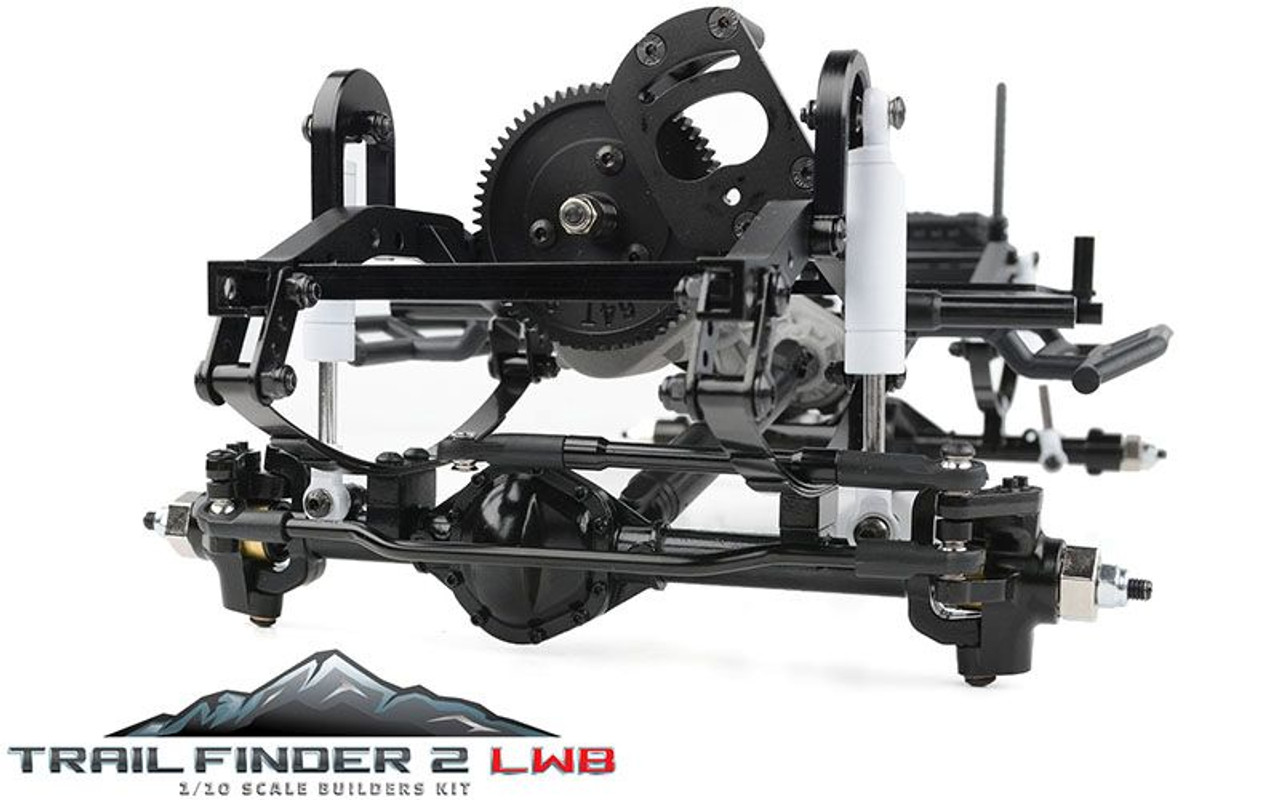

- DRIVETRAIN: The R3 Single Speed Transmission comes with a tough cast metal case and wider gears to allow for more abuse along with a Delrin Spur with Slipper Clutch. It also features a sturdy billet aluminum motor mount for durability. The Trail Finder 2 LWB Kit includes the Hammer Transfer Case. Packed with detail, the case features a cast metal exterior and the same 0.8 Mod widened gears for durability. Drawing on the success of the RC4WD MOA gear sets, the Trail Finder 2 LWB Kit Drivetrain has the most durable gears RC4WD has to offer so the Trail Finder 2 LWB Kit can stay on the trail, day after day. The most scale-accurate axles in the market, the RC4WD K44 Ultimate Scale Cast Axles feature innovative round knuckles, lower mounting points, XVDs for the front axles and compact offset pumpkins. The Drive Shafts for the Trail Finder 2 LWB Kit are an all new design featuring bulletproof steel universals and a new high quality plastic shaft for great driveline angles and durability on the trail.
- SUSPENSION: The Trail Finder 2 LWB Kit Chassis features a molded fuel cell that double
