Product Description
Specifications:

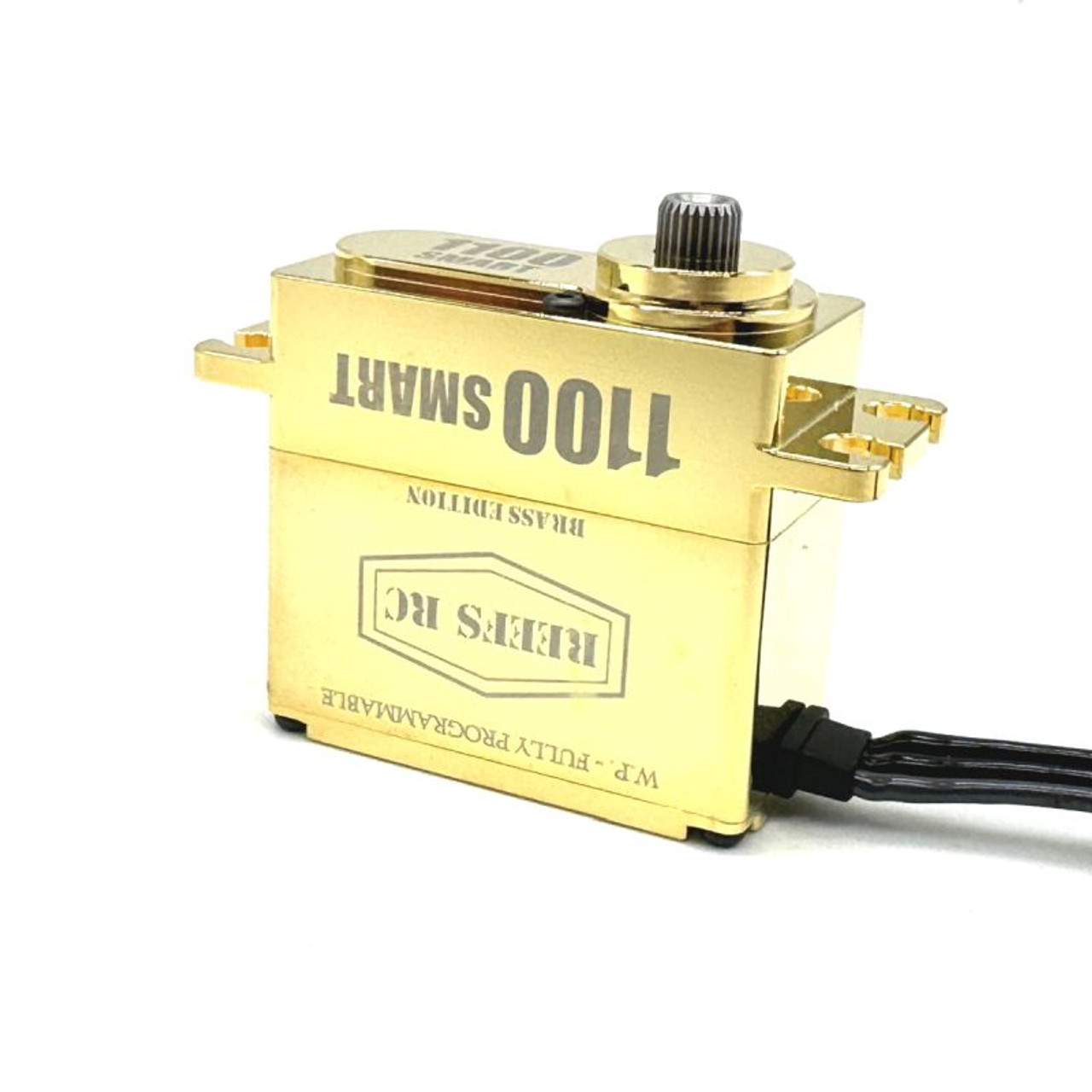

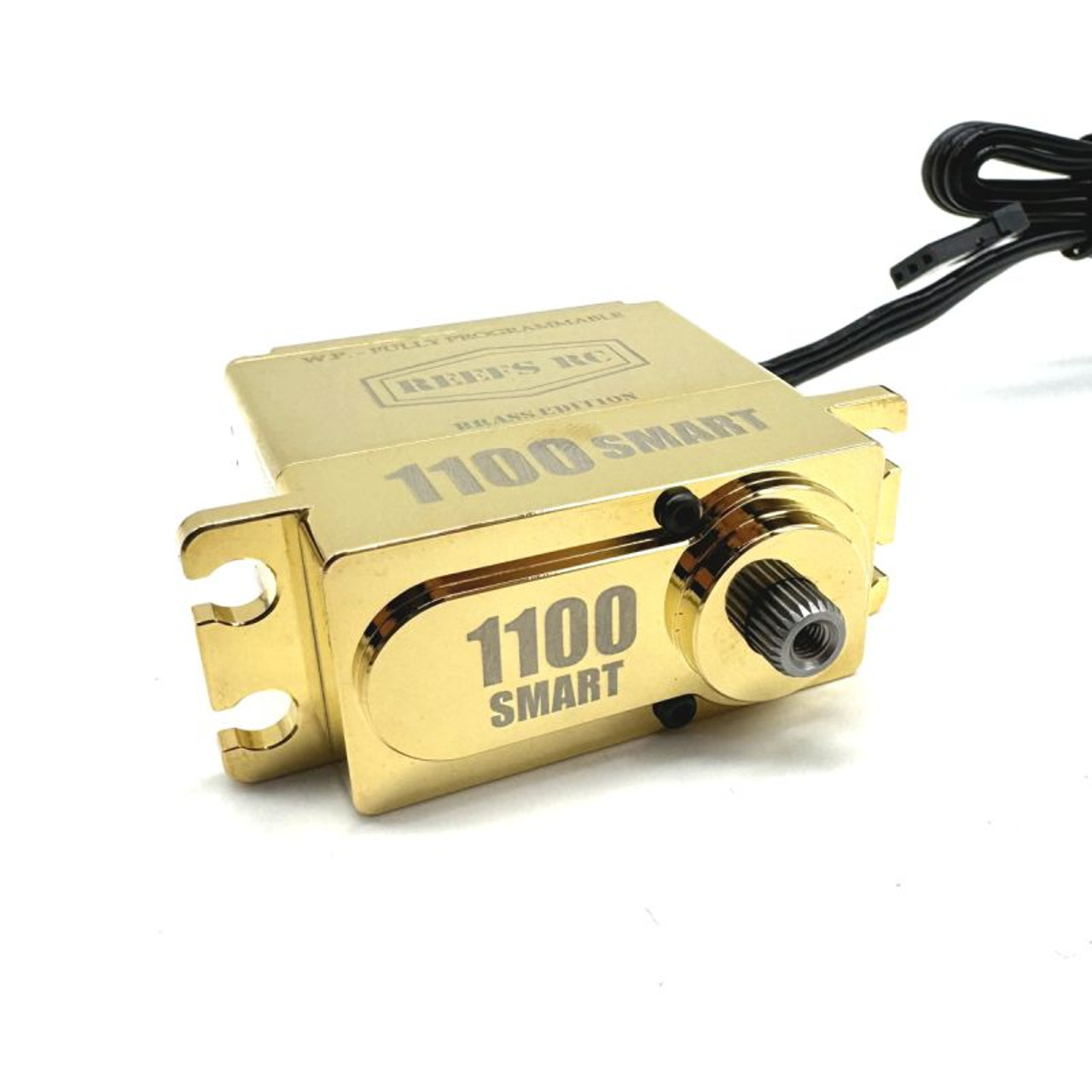

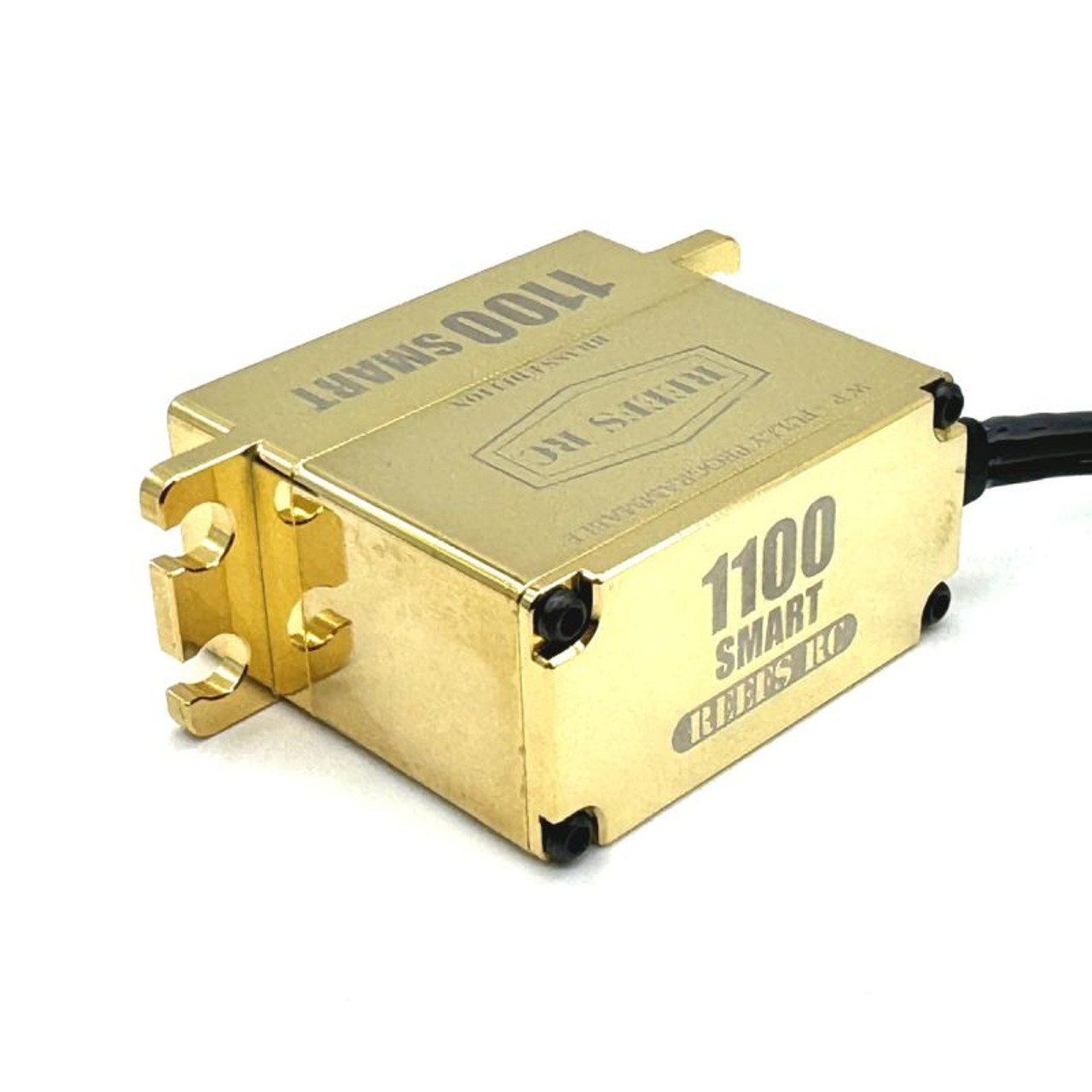

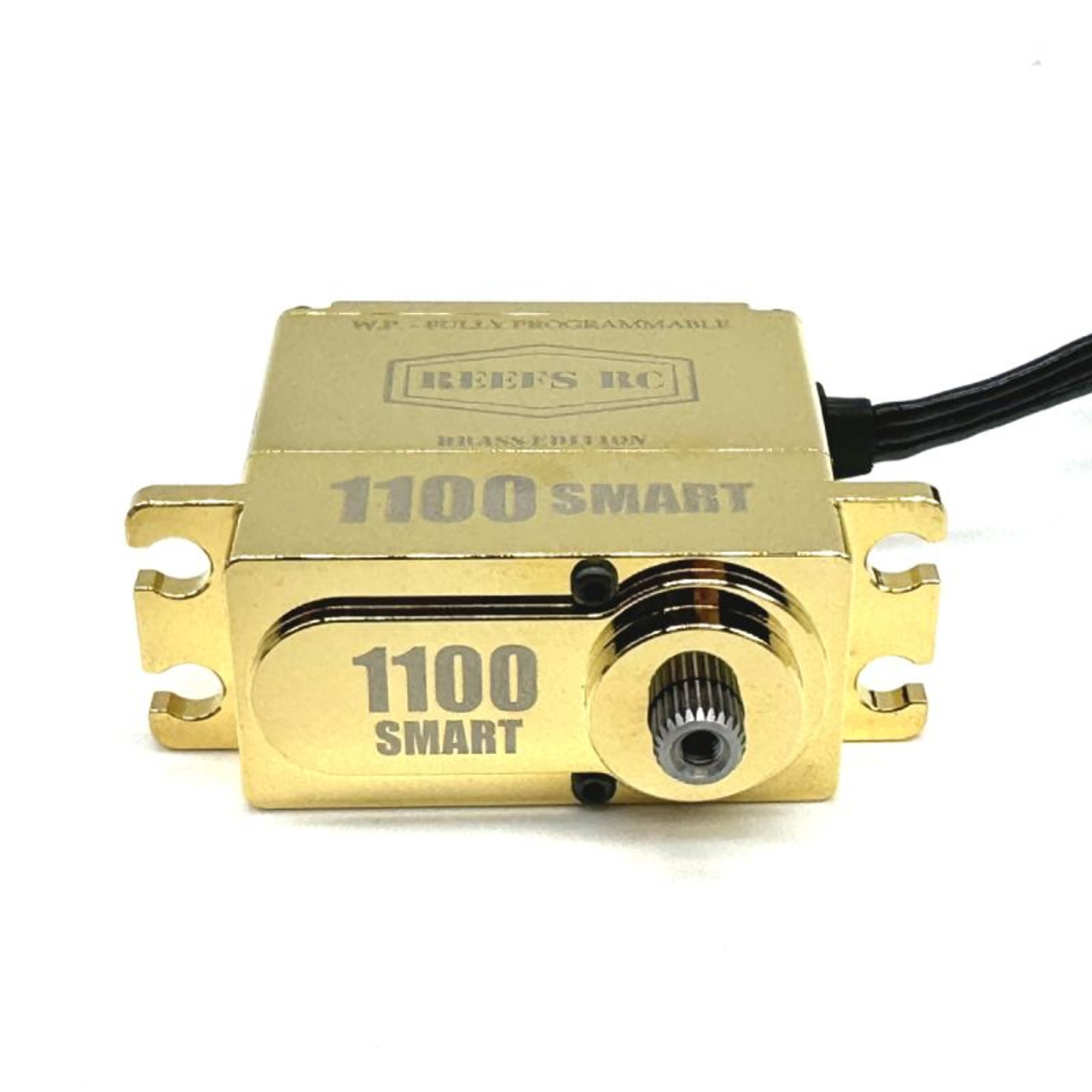

- High Torque High Speed Brushless SERVO or WINCH
- Comes as SERVO out of the Box, can be changed to WINCH with the REEFS LINK (Sold separately) and Software.
- BUILT IN PREPROGRAMMED WINCH CONTROLLER
- SUBMARINE WATERPROOF: 7 Point Seals
- Military Grade Construction
- Magnetic Angle Sensor
- Pulse Width Modulation Control
- 4 Pole Brushless Motor
- Voltage: 4.8V - 8.4V
- Internal: Steel Gears / BRASS Casing / ULTRA Finish
- Weight: 5.29oz / 150g
- Bearing Type: 4 Ball Bearings / Weight: 2.99oz
- Dimension: 1.57 x .79 x 1.5 (LWH)
- Torque: 760oz @ 6v/ 930oz @7.4v/ 1100oz @8.4v
- Speed: .16sec @6v/.13sec @7.4v/.12sec @8.4v
- Spline: 25T
- Dead Band Width: 2ls
- BEC Not Req. (Recommended for max performance)
- Unload Current: 460mA @ 4.8V / 500mA @ 6.0V / 540mA @ 7.4V / 580mA @ 8.4V
- Load Current: 5400mA @ 4.8V / 6000mA @ 6.0V / 6800mA @ 7.4V / 7500mA @ 8.4V
