Product Description

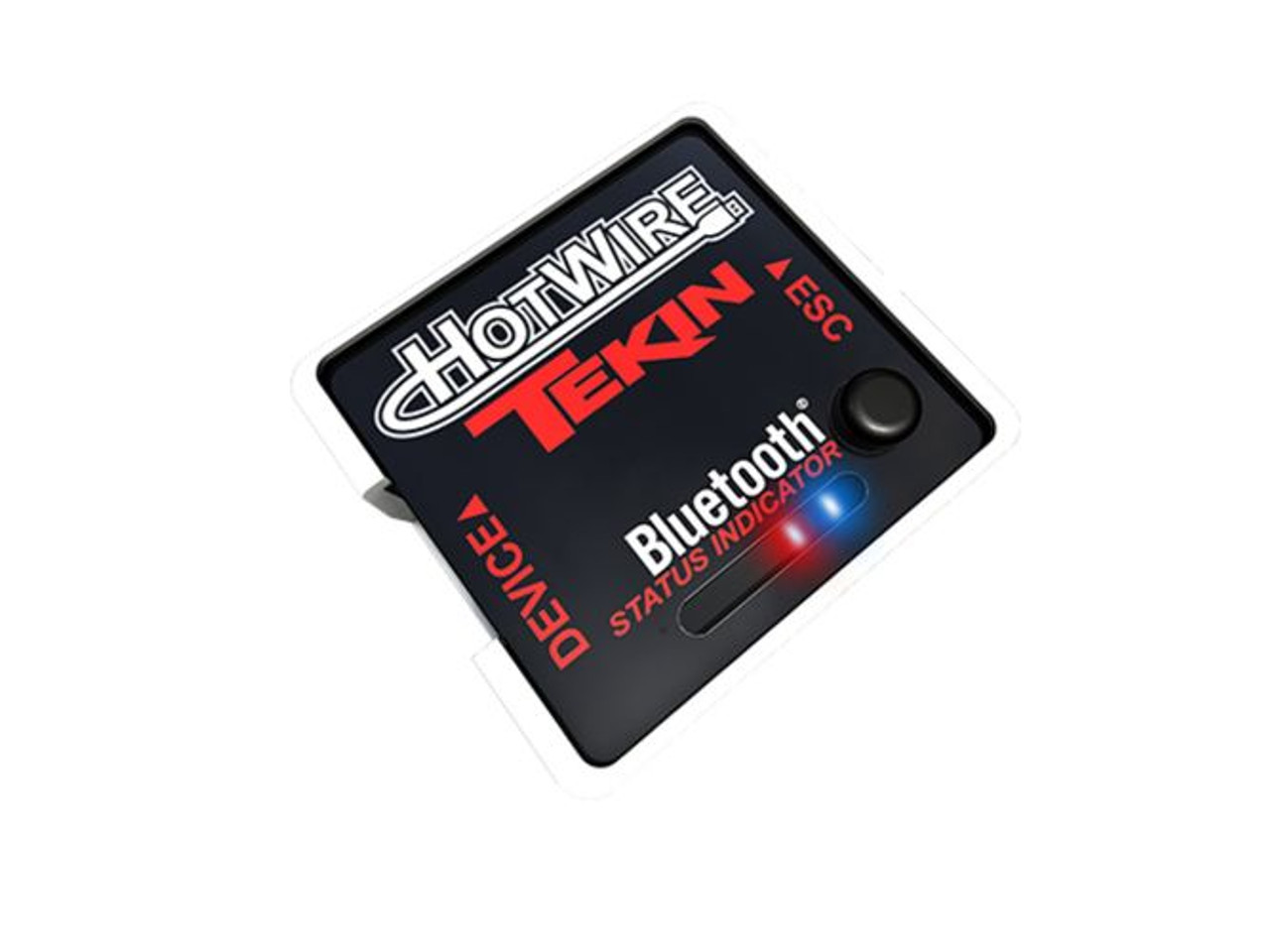

Unlock the full potential of your Tekin speed control with the HotWire 3.0, connect to a host of devices running Windows, Android and Apple Operating Systems via secure Bluetooth technology and leverage the processing power of these devices to fine tune performance. The HotWire provides access to additional tools such as data logging, adjustable high-voltage BEC settings and many more in-depth tuning options. The HotWire also lets you network with other users to share tuning tips and entire track/condition specific profiles with friends. Team Driver setup files are available to all, right off the Tekin website! Best of all, the HotWire lets you download completely new software as it is developed and upload the newest firmware to your speed control - you get unrestricted access Tekin's latest and newest performance mods!
HotWire V3.0 Connects to:
Windows USB: All Tekin ESCs* All Tekin Servos*
Android USB: All Tekin ESCs*
Android Bluetooth: GEN2 & UP ESCs
Apple iOS Bluetooth: GEN2 & UP ESCs
The HotWire V3.0 can connect via Windows USB to program Tekin Servos and all Tekin ESCs*. It can also connect to GEN2 & UP ESCs with a Data Port via Bluetooth on most Android and iOS devices, see below for minimum device requirements.
*TT3848 HotWire 3.0 Adapter Cable included! Allows you to connect to Tekin Servos and Tekin ESCs through the receiver plug.
Features:
- Connect via PC, Netbook, Android and iOS Devices
- Connect to Tekin ESCs via Bluetooth and USB connection
- Connects to all Tekin GEN2+ ESCs with EZ Data Port
- Connects to Tekin Servos with TT3848 Adapter (included)
- Quick and Easy Installation
- Option to Leave Installed in Vehicle
- Make ESC Adjustments on-the-fly without touching your vehicle
- Connect Multiple HotWire 3.0 Devices
- Datalogging Capabilities
- LED Status Indicator
- USB Cable Included
- Free HotWire Software and ESC/Servo Firmware updates
- 180-Day Factory Warranty
- Lifetime Support
- Access to Team Driver Speed Control Profiles
- Create, Download and Share Custom Speed Control Profiles
Specifications:
- Part #: TT1452 HotWire V3.0
- Dimensions: 1.02 x 0.93 x 0.38" / 26 x 23.75 x 9.75mm
- Weight: .30oz / 8.4g
ESC Programmable Features*
- Update ESC Firmware
- ?Create, Save, Load and Share Custom ESC Profiles
- Drag Brake (0-100 steps)
- Brake Strength (0-100 steps)
- Brake Minimum (0-30 steps)
- Active Drag (ON/OFF)
- Active Braking (0-6 steps)
- Brake Frequency (750hz - 12kHz)
- RPM Intelligent Brake Strength (0-10steps)
- Throttle Minimum (0-30 steps)
- Throttle Frequency (2kHz - 12kHz)
- Torque Limiter (0-10 steps)
- Reverse Speed (0-100 steps)
- Reverse Delay (0-2seconds)
- Neutral Width (0-100 steps)
- Push Control (0-100 steps)
- Timing Profiles 5 Preset - 2 Custom
- Locked Spec Mode
- Boost (0-55 steps)
- Boost RPM Range (user programmable)
- Turbo (0-50 steps)
- Turbo Delay (0-2seconds)
- Turbo Ramp (1-10 steps)
- Sensored Only Mode
- Dual Drive Mode
- Brushless Modes - FWD Only / FWD-REV / FWD-REV Delay / REV Motor Rotation
- Brushed Modes - FWD Only / FWD-REV / FWD-REV Delay
- Voltage Cutoff - 2S, 3S, Custom Per Cell
- 1S LiPo Mode
Servo Programmable Features
- Update Servo Firmware
- Feel - Mild to Aggressive
- Speed Limit
