Product Description

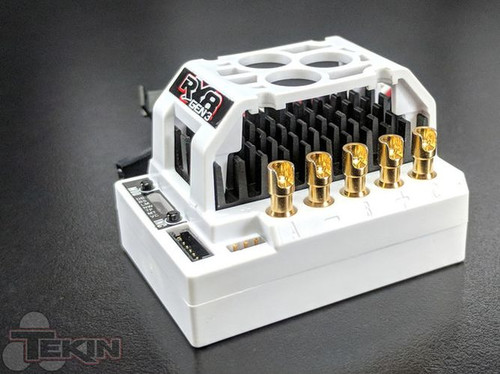

Tekin's RX8 GEN3 brings bigger power handling capabilities and increased reliability to 1/8 Scale Racing. The RX8 platform has proven itself to handle the rigors of racing, while providing professional features including a programmable High Voltage BEC, Data Logging Capabilities, Timing Profiles, Voltage Cutoffs for LiPos, HotWire 3.0 Bluetooth Connectivity and more. Utilizing Tekin's D2 Dual Drive Mode Technology, the RX8 runs both Sensored and Sensorless motor drives seamlessly, giving you the best of both worlds. The small footprint makes install on any chassis easy with the option of mounting with included hardware for extra security. Combo the RX8 GEN3 with a Tekin T8 Brushless Motor for 1/8 Scale Buggies and Truggies or a Pro4HD for 4WD Short Course domination!
OFF ROAD:
1:10 4WD Short Course
1:8 4WD Buggy
1:8 4WD Truggy
1:8 4WD Monster Truck
ON ROAD:
1:8 4WD Touring Car
1:8 GP
OVAL:
1:10 4WD SC Modified
1:8 4WD SC Late Model
DRAG RACE:
1:10 No-Prep Eliminator
Features:
- HD Gold-plated Solder Posts for Easy Soldering
- Multi-Fin High Efficiency Heat Sink and Optional High RPM Cooling Fan
- QuickTune One Touch Programming
- Adjustable Torque Control *
- Adjustable Throttle and Brake Frequencies *
- HD High Voltage Programmable BEC *
- HotWire Programming Port *
- Data Logging Capability *
- Sensor Checker
- On-Board Temperature Indicator
- ESC Self Diagnostics with Error Codes
- Fully Proportional Forward/Brake/Reverse
- Brushless and Brushed Motor Drive
- Sensored or Sensorless Operation
- LiPo Safe with Custom Voltage Cutoffs
- Sensor Plug for Precise Commutation
- HDAC: High Density Copper PCB's
- Ultra-smooth and Precise Throttle and Braking Control
* Requires HotWire sold separately.
Specifications:
- Controls: Forward/Brake/Reverse
- Input Voltage: 2-6S LiPo/LiHV; 8.4-26.1V
- Motor Limit Brushless Dual Mode: 2S - 2.0T 540/550 Can; 3S - 4000KV; 4S - 3500KV; 5S - 2000KV; 6S - 1700KV
- Motor Limit Brushless Sensored Mode: 2S ONLY - 3.5T 540 Can
- MAX Current: 300amps per phase*
- Burst Current: 1000amps per phase*
- BEC Current: 8amps
- BEC Voltage: 6.0V / 7.4V
- Dimensions: 38 x 55.8 x 35.5mm / 1.5 x 2.2 x 1.4in
- Weight: 76.5g / 2.7oz
