Product Description
The RC10 started as the vision of Team Associated's founder Roger Curtis (RC) and became one of the most iconic RC cars in history.
At the inaugural IFMAR Off Road World Championships, Jay Halsey took first place with his RC10 in the 2WD class, but did you know he also raced a prototype 4WD RC10 in the 4WD class and took second place?

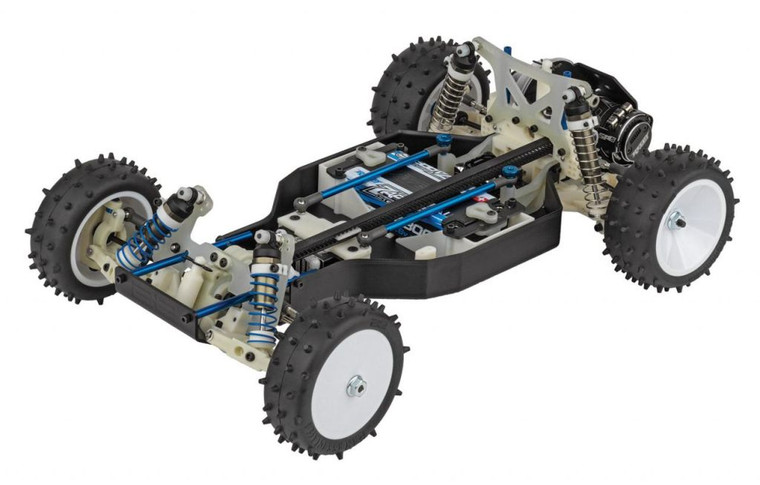

Team Associated never advanced that prototype 4WD and instead focused on 2WD. But what if Team Associated had developed a 4WD RC10? You'd get the RC10 4WD Team Car off road buggy!
Our team of engineers took the iconic RC10, the knowledge of 4WD racing from the B74, and created the RC10 4WD. No more having to buy an RC10 kit, a conversion kit, and random parts. Now you can have a genuine Team Associated RC10 4WD that is meant to be raced, with all the parts in one box. All you need to do is add electronics and hit the track!
Required to Complete:
- 1:10 scale 540-size electric RC car motor
- 1:10 scale radio control electronic speed control
- 7.4V-7.6V 2S LiPo with "shorty" battery dimensions (standard or low-profile height)
- Battery charger (for one of the batteries mentioned above)
- 2-channel RC surface transmitter and its batteries
- Lexan specific spray paint for body
- Steering Servo
Features:
- New updated belt guide
- New updated chassis stiffener system
- New thumb ball nuts allow for easy battery access
- New taller pulley guides
- 4WD black anodized 6061-T6 aluminum monocoque tub chassi
- Black anodized noseplate and motor plate
- Updated bleeder shock caps
- Fully adjustable four-wheel independent suspension
- Protech clear body with gas cutout template
- Long travel, fluid-filled, hard-anodized aluminum coil-over shocks Powerful rear disk brakes
- Race proven front and rear Stealth transmissions
- Adjustable ball differentials front and rear
- Rear 2.2" wheels included
- HD metric ball studs throughout
- Race proven V2 slipper clutch system
- Exceptional ground clearance with low center of gravity
- Vintage 4WD spike tires included
- Clear Viper body with driver figure
- 4WD specific shock towers front and rear
- Precision bearings throughout
- Fits 6-cell NiMh and 2S LiPo battery packs
- Adjustable 3.5mm turnbuckles all around
- Front and rear CVA driveshafts
- Durable low friction center belt and tension system
- Long front arm geometry
- All new front caster and spindle assembly designed for RC10 4WD
- Updated rear bulkhead and chassis stiffener
- Carbon fiber rear transmission brace
- Front 2.2" 12mm hex wheels included
- All new 4WD specific bell crank system
- 5.5" high-downforce polycarbonate race wing included
Specifications:
- Power Source: Electric
- Terrain: Off-Road
- Body Style: Buggy
- Scale Size: 1:10 Scale
- Assembly Level: Kit (This vehicle comes as a kit and must be fully assembled by the user. See "Required to Complete" for extra items needed.)
- Length: 381mm (15in)
- Width: 241mm (9.49in)
- Wheelbase: 273mm (10.75in)
- Weight: Varies
- Internal Gear Ratio: 2.6:1
- Drive: 4WD
