Product Description
RC AU TOM'S GR Supra TT02
This R/C model recreates the Toyota GR Supra GT500. The GR Supra GT500 was developed in accordance with GT500 class regulations as a replacement for the LEXUS LC500 which flourished in three seasons from 2017 to 2019. With the streamlined car design of the roadgoing GR Supra, this racing car features a carbon monocoque frame, dedicated aerodynamic components and transmission, plus a 2,000cc inline 4-cylinder direct injection turbo-charged engine "RI4AG."
The accurately depicted au Tom's GR Supra body is made of polycarbonate and ABS plastic wing and mirror pieces, which sits on top of our most builder user friendly TT-02 entry-level on-road chassis.
TT-02: Adaptable, balanced shaft driven 4WD
The shaft-driven 4WD TT-02 chassis employs a longitudinal layout with the battery on the left and the motor on the right, to give excellent stability. In addition, it features identical left and right suspension arms and uprights for ease of assembly, plus easy-to-maintain gearboxes. It is a highly adaptable chassis, as it offers 2 different wheelbases, 2 ground clearance settings and 2 tread set-ups in addition to a range of 10 possible gear ratios. It is not short on looks either, with brake disc-shaped wheel hubs and stylish front bumper supports. Gun metal color 10-spoke wheels and slick tires make for a racy finish.
NOTE: Item is sold as a kit and requires assembly and painting.
Required to Complete:
- 2-channel radio
- Steering servo
- 7.2volt battery
- Compatible charger
- Tamiya PS paint
- Assembly, painting, and assembly tools required
Features:

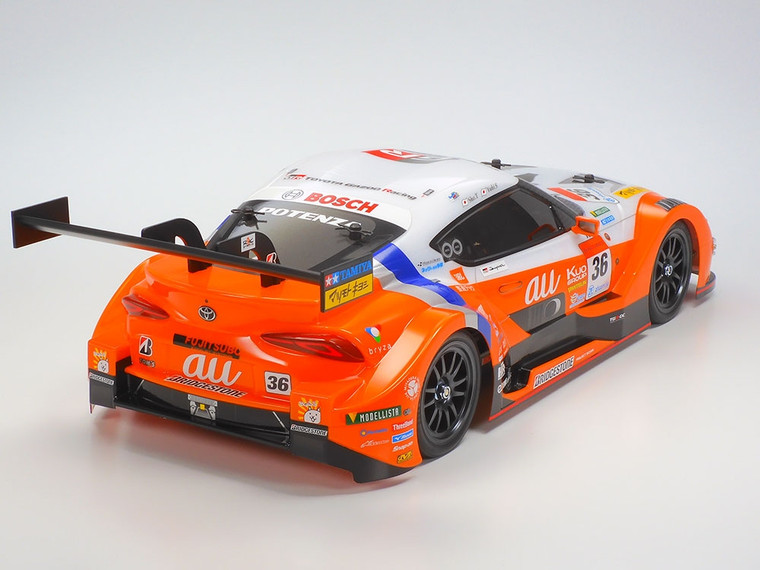

- Take a look at the rear of the model, the powerful GT car form unerringly captured by the kit's polycarbonate body
- Headlight cases and dual canards on each side of the nose are separately molded polycarbonate parts for even more detail
- Side mirrors are molded separately in plastic, and are dedicated parts developed for this model.
- Complex side sections with "lateral duct" detailing are depicted in style
- The rear of the body features a distinctive flat trunk and racy diffuser
- The rear wing is recreated by a single part molded in ABS plastic
- 12-spoke wheels are molded in gun metal color, and paired with racing slicks
- Motor cover includes removable cooling duct
- Wheel hubs are shaped to look like brake discs
- Resin ball links in the steering linkage joints make for smooth, comfortable motion
- Includes motor and THW-1060 ESC
Specifications:
- Construction Type: Assembly Kit
- Chassis Type: TT-02
- Length: 466mm, width: 188mm, height: 125mm
- Wheelbase: 257mm
- Tire width/diameter: 27/67mm (front & rear)
- Bathtub-type frame
- Shaft-driven 4WD
- Front/rear 4-bevel plastic differentials
- 3-piece steering tie-rod
- 4-wheel double wishbone suspension
- Front/rear friction dampers
- Gear ratio = 8.27:1 (9 further ratios from 11.38:1 to 7.28:1 possible with use of separately-sold pinions)
- Type 540 motor
- Includes HobbyWing THW 1060 Brushed Motor ESC (2-3S)
